General Pump EZ3035GUIL EZ Series Pump with Unloader and Injector - Left Shaft 3.5 GPM
Brand:
Mfr. Model #:
EZ3035GUIL
KR Part #:
GPEZ3035GUIL
Weight:
19.30 lbs
Manuals

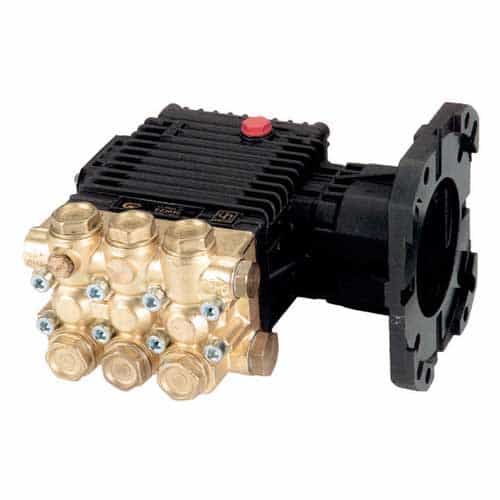

Medium-duty 3000 PSI Triplex Plunger Pump featuring solid ceramic plungers, built-in TP Unloader and downstream injector. Features die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves. 3.5 GPM flow from a compact, flanged unit. Note: picture shows right shaft, but this is a left hand pump.
Technical Specifications
Max PSI: 3000
RPM: 3400
Max Temperature: 165 degrees F
Crankcase Capacity: 14 oz
Bore: 15 millimeter
Stroke: 8.5 millimeter
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Max GPM: 3.5
Product Description
General Pump EZ Series 44 G Pump
Medium-duty Triplex Plunger Pump features solid ceramic plungers, die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves for excellent reliability and durability. Compact design for ease of integration into system. Features 1" hollow left side shaft and gasoline mounting flange for engines up to 13 HP. Built-in TP unloader and downstream injector makes it ready to plug in and go with ease!Dimensions: 8.8" x 9.7" x 6.5"
Features:
- Solid ceramic plungers
- Standard SAE J609 gasoline mounting flange for up to 13 HP engines
- Forged brass manifold with 4:1 hydrostatic rating
- Die-cast, anodized aluminum, oil-bath crankcase
- Premium roller bearing
- Unitized stainless steel inlet and discharge valves
- Built-in TP unloader and downstream injector
- Left shaft design
- Maximum Volume: 3.5 GPM
- Maximum Pressure: 3000 PSI
- Maximum Pump Speed: 3400 RPM
- Maximum Fluid Temperature: 165ºF
- Inlet Port: 1/2"-14 BSP-F
- Outlet Port: 3/8"-19 BSP-F
