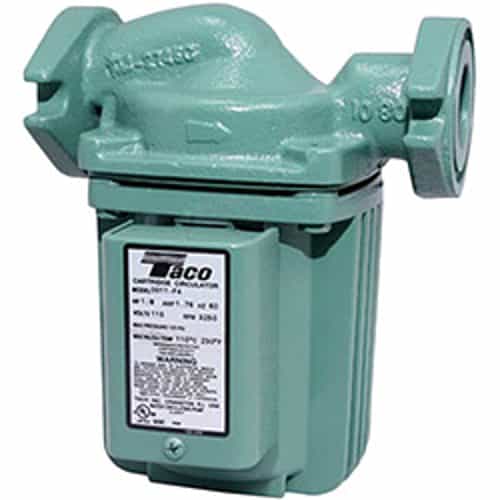

Taco 0011-F4 Flanged Cast Iron 1 Phase Cartridge Circulator Pump - 31 GPM, 115VAC, 1/8 HP

Mfr. Model #:
KR Part #:
12.00 lbs
Out of Stock - Pre-Order Now
Now Only!
Cast iron cartridge circulator for high head/medium flow applications like chilled water cooling and closed loop hydronic heating systems. Cartridge contains all moving parts, so service is easy. 31 GPM, 1/8 HP, 1 PH.

Product Description

31 GPM High Velocity Cartridge Circulator Pump

The Taco 0011-F4 Cartridge Circulator is a cast iron pump ideal for high head/medium flow applications in light commercial and large residential chilled water cooling and closed loop hydronic heating systems. The unique replaceable cartridge holds all of the moving parts and allows for easy service instead of replacing the entire circulator unit. Universal flange to flange dimensions and orientation allows the 0011-F4 to easily replace other models. Compact, low power consumption design makes it ideal for high-efficiency jobs.
Ideal for high-pressure drop boilers, fan coil units, heat exchangers, large radiant heating, and heat recovery/geothermal systems.

Taco 0011-F4 Specifications:

  • Maximum Flow Rate: 31 GPM
  • Maximum Head: 31'
  • Fluid Temperature Range: 40° Fahrenheit to 230° Fahrenheit
  • Maximum Working Pressure: 150 PSI
  • Connections: 3/4", 1", 1-1/4", 1-1/2" flanged

Taco 0011-F4 Electrical Data:

  • Volts: 115
  • Hz: 60
  • Phase: Single
  • Amps: 1.76
  • RPM: 3250
  • Horsepower: 1/8
  • Motor Type: Permanent split capacitor impedance protected

Taco 0011-F4 Features:

  • Exclusive ACB anti-condensate baffle with ambient air flow-Protects motor windings against condensate buildup
  • High velocity performance - compact design
  • Quiet, efficient operation
  • Direct drive-low power consumption
  • Unique replaceable cartridge design - field serviceable
  • Self lubricating
  • No mechanical seal
  • Unmatched reliability - maintenance free
  • Universal flange to flange dimensions

Taco 0011-F4 Materials of Construction:

  • Casing: Cast iron
  • Stator housing: Aluminum
  • Cartridge: Stainless steel
  • Impeller: Non-metallic
  • Shaft: Ceramic
  • Bearings: Carbon
  • O-rings and Gaskets: EPDM
