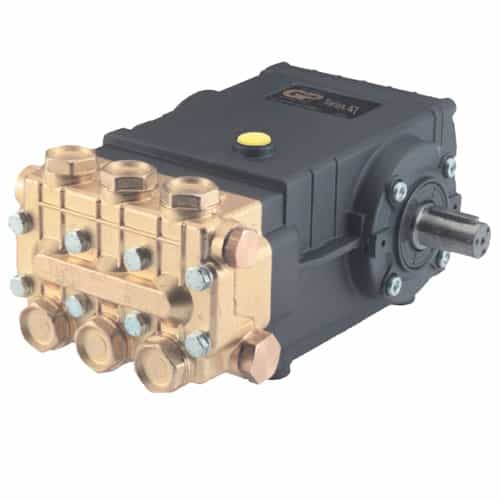

General Pump TSS1021 Plunger Pump with Right-Hand Shaft - 5.6 GPM, 1700 PSI
Brand:
Mfr. Model #:
TSS1021
KR Part #:
GPTSS1021
Weight:
33.00 lbs
GTIN:
682491064725
Availability:
2
Manuals
The General Pump T-47 Series is the preferred pump frame in the pressure cleaning industry. Features a forged brass manifold, heavy-duty tapered roller bearings, and unitized SS inlet and discharge valves. Flow up to 5.6 GPM, with pressure capability up to 3500 PSI.
Technical Specifications
Bore: 20 millimeter
Crankcase Capacity: 40.6 ounce
Inlet Port: 1/2 inch
Max GPM: 5.6
Max PSI: 1700
Max Temperature: 165 degrees F
RPM: 1450
Shaft Diameter: 24 millimeter
Stroke: 16 millimeter
Product Description
TSS Series 47 Triplex Plunger Pump
Triplex plunger pump featuring advanced forged brass manifold for increased working pressure. Solid ceramic plungers with continuously lubricated packings and oversized connecting rods, for maximum life span. 24 mm solid shaft, located on right side.
Dimensions: 12.6" X 9.2" X 6.9"
Features:
- Triplex Plunger Pump.
- Advanced forged brass manifold, increases working pressure to 3,500 PSI.
- Large-capacity, die-cast, anodized aluminum oil-bath crankcase
- Solid ceramic plunger
- Unitized stainless steel inlet and discharge valves
- Right side shaft
Specifications:
- Max Volume: 4.5 GPM
- Max Discharge Pressure: 3500 PSI
@1450 RPM
- Max Volume: 5.6 GPM
- Max Discharge Pressure: 1700 PSI
Common Specs:
- Max Pump Speed: 3500 RPM
- Max Temperature: 165°F
- Inlet Port: 1/2"-14 BSP-F
- Outlet Port: 3/8"-19 BSP-F
