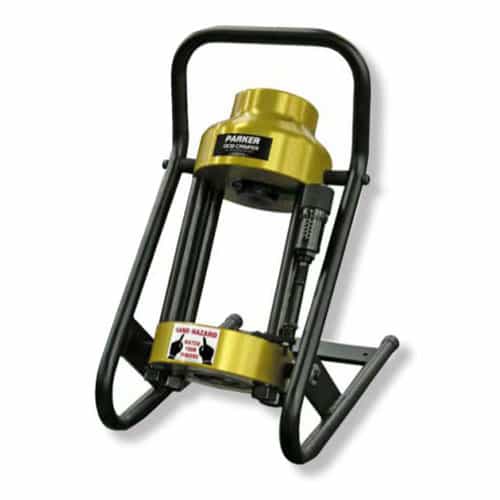

Parker DE-30 Portable Crimper

Brand:
Mfr. Model #:
DE-30
KR Part #:
KRIMPDE30
Weight:
70.00 lbs
MSRP
$4,884.28
Now Only!
$3,052.67
Simplifies gauging in crimping. Cycle - time is reduced by the pusher retraction stop. Features micrometer gauging mechanism. Choose your power source.
Freight Only

Freight Only




Product Description

Movable Crimping Unit

Simplifies gauging aspects of crimping. Pusher retraction stop reduces cycle-time which speeds up the process of making hydraulic hose assemblies. Features a new micrometer gauging mechanism, one-piece handle and strong, lightweight top and bottom plates. Four strain rods reinforce precision and durability. Includes color-coded die sets that make finding the right strain easy. Customizable with options for pumps, dies, and storage boxes.

Specifications:


  • Crimps through 1" ID 2-wire braid hose and 4-spiral wire hose with EN00-021 Die set kit and pusher

  • Power Source(s): hand pump or air hydraulic pump

Dimensions:


  • 12.75" wide x 19" deep x 20" high


Weight:


  • 48 pounds (less pump and die sets)

Options:


  • Pump: Hand pump or Air powered hydraulic pump

Dies:


  • Color coded split ring die sets

  • Color coded solid die ring set

  • Notched bent tube pusher plate

  • Die storage box

  • Quick disconnect fitting for pump hose


Product Features:


  • Supersedes EC30 and K-16 crimpers

  • 30-ton cylinder

  • Four strain rods for greater durability and crimping precision

  • New micrometer gauging mechanism for greater accuracy and reliability

  • Improved one-piece handle and base design for easier field and vehicle installation

  • Strong and lightweight base plate and top plate for improved portability

  • Color coded die rings make selection easy

  • Detachable pusher and pusher plate
