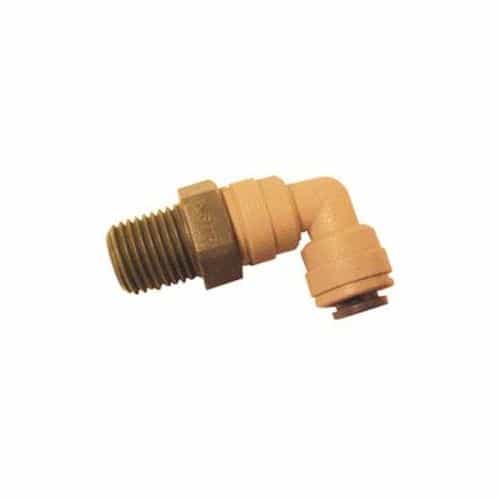

Parker A6MES4-MG TrueSeal Male Swivel Elbow, 3/8 in. Tube x 1/4 in. MIP
Brand:
Mfr. Model #:
A6MES4-MG
KR Part #:
PTS6SE4
Weight:
0.04 lbs
Lightweight, robust acetal push fitting 90-degree elbow with EPDM seal and swivel movement on threaded end for versatility. Gripping ring with stainless steel bite edge provides secure connection to tubing. Field attachable, no tools needed to connect to tubing.
Technical Specifications
Max PSI: 300
Min Temperature: -20 degrees F
Max Temperature: 180 degrees F
Product Description
Parker TrueSeal 90° Male Swivel Elbow
Lightweight acetal field-attachable fixed elbow fittings are an excellent choice for building and maintaining car wash fluid control systems. 90-degree swivel elbow provides change of direction in tight spaces with swivel versatility to prevent hose kinking. Stainless steel bite edge provides watertight tube attachment, and is compatible with tubing including polyethylene, polypropylene, nylon, fluoropolymer, Kynar and more! Great for car wash and pressure wash businesses, with excellent chemical resistance.
Specifications:
- Pressure Range: Vacuum to 300 PSI
- Temperature Range: -20°F to 180°F
- Port 1: 3/8" Tube
- Port 2: 1/4" NPTF
