A/C Pro ACP-100 Ultra Synthetic R-134a Car Refrigerant Kit - 20 OZ

Brand:
Mfr. Model #:
ACP-100
KR Part #:
ACP-100
Weight:
0.30 lbs
Usually Ships in 2 Weeks
MSRP
$104.83
Now Only!
$57.49

Manuals

Refresh an air conditioning system quickly, easily, and affordably with this refrigerant kit. Seals leaks in rubber hoses, gaskets and O-rings, and protects your AC system. Convenient 20 ounce can.

NOTE: Not available in Canada



Product Description

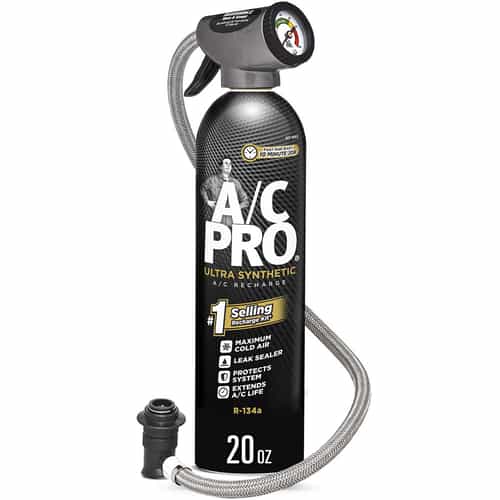

A/C Pro Ultra Synthetic R-134a Car Refrigerant Kit

The A/C Pro Ultra Synthetic Refrigerant Kit features a specially designed formula that helps a vehicle's A/C produce the coldest air. The approximately 17 oz. of R-134a and 3 oz. of additives are used to recharge a vehicle's A/C system, seal common leaks in the rubber components, and protect and extend the A/C system's life by eliminating acid and moisture buildup. This #1 selling A/C recharge kit (according to NPD 2016) comes with a reusable extra-long braided charging hose and gauge.

This is a clearance item with limited inventory. All sales final - no returns


Details:
  • Replaces lost R-134a refrigerant in automotive A/C system
  • Extends life of older or high-usage A/C systems
  • Safely seals leaks in hoses, gaskets, seals and O-rings
  • ACME threaded top
Usage Instructions:
  • Step 1 - Turn engine & A/C on. Start car and turn on A/C to its highest settings, MAX-COOL.
  • Step 2 - Determine if compressor is on. With A/C on, determine if compressor clutch is engaged (cycled on). TIP - If the compressor is not cycling on, add can of refrigerant using instruction 7.
  • Step 3 - Find service port. Locate the vehicle's low pressure port on the larger diameter aluminum tubing, between the compressor and evaporator. Remove the plastic cap from port and save. Visit our port locator for help locating your low pressure service port.
  • Step 4 - Remove shipping disk. Unscrew trigger dispenser from can and set can aside. Remove red & white shipping disk by unscrewing and discard.
  • Step 5 - Attach quick connect. Attach the quick connect fitting on end of recharge hose to the low pressure port (only port it will fit on to) by simply pushing the fitting on to the low pressure port; you will hear a click. DO NOT PULL TRIGGER as it will release refrigerant from the vehicle.
  • Step 6 - Read pressure. Rotate the grey dial on the gauge until the center arrow in the "V" on the clear plastic lens points to the ambient (outside) temperature (if temperature is between 85°-115°F, point red arrow at 85°F). Read pressure when the clutch is engaged. If the gauge needle is past the "V", please read instruction #2. If the gauge needle is before the "V" please read instruction #7. If the compressor is cycled on and the pressure is in the red, do not attempt to recharge. Seek professional help. NOTE: For cans purchased without charging hoses, follow instructions on charging hose (purchased separately).
  • Step 7 - Charge. Pull ring back to disconnect recharge hose from vehicle and screw can on to recharge hose (CAN IS NOW READY FOR USE). DO NOT REMOVE TRIGGER FROM CAN UNTIL EMPTY. Reconnect quick connect to low pressure port. Shake can well. Hold can upright to charge, shaking and rotating from 12 o'clock to 3 o'clock every few seconds. Squeeze trigger to dispense contents. Continue process, releasing trigger every 10 - 15 seconds to check system pressure with the "V" range on gauge. Continue this process until the system is fully charged (PSI in GREEN zone) or can is empty. BE CAREFUL NOT TO OVERCHARGE YOUR SYSTEM. NOTE: For cans purchased without charging hoses, follow instructions on charging hose (purchased separately).
  • Step 8 - Completion. It is possible that the can will not be empty when finished. In this case after disconnecting from vehicle simply leave the recharge hose on the can and store in a cool dry location. If the can is empty, hold upside down for one minute to dispense any remaining product, disconnect from vehicle and simply unscrew the can and discard. The recharge hose may be used again with another can of A/C Pro refrigerant or any R-134a can with a threaded cap. Replace the plastic cap you removed from port during instruction #3. For California Version (Model ACP-100CA/ACP-102CA) DO NOT DISCARD. Return to place of purchase for deposit. TIP - It is normal for the recharge hose and gauge to hold pressure after use.
