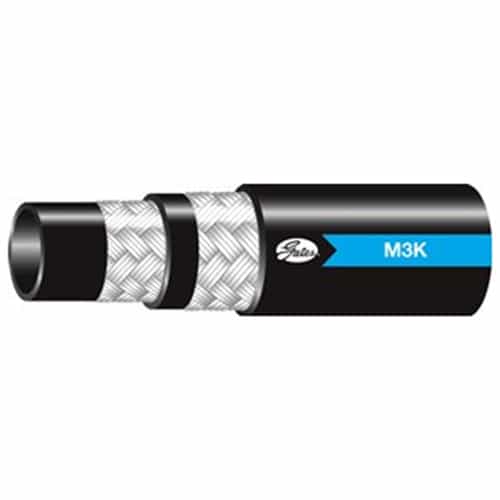

Gates 4657-1157 High Pressure 4M3K Braided Hydraulic Hose - 1/4in. OD, 3000 PSI

Mfr. Model #:
KR Part #:
0.12 lbs
Now Only!
Highly flexible hose with tight bend capabilities. for high-pressure hydraulic oil lines.Operating temperature -40°F to +212°F (-40°C to +100°C). Sold by the foot.
Prep 65

Prop 65


Product Description

High Pressure Hydraulic Hose - 1/4"

This hydraulic hose exceeds ISO 18752 Grade B, SAE 100R17 and ISO 11237 R17 working pressure, minimum bend radius requirements and performance requirements of EN 857 1SC. M3K hose has smaller exterior dimensions and significantly tighter bend radius than other SAE 100R1 and 100R2 hose.
  • Min pressure: 3000 PSI
  • Max Pressure 12000 PSI
  • 1/4" ID
  • Nitrile tube with single steel braid reinforcement
  • Black PVC Type C2 cover
  • SAE 100R17
  • Operating temp: -40°F to +212°F
