Watts 1 1/4 LF009M2-QT-FS Series LF009 Backflow Preventer - 1-1/4in.

Brand:
Mfr. Model #:
1 1/4 LF009M2-QT-FS (88004113)
KR Part #:
WBF009M2QT
Weight:
17.00 lbs
GTIN:
098268349870
Usually Ships in 2 Weeks
MSRP
$1,166.84
Now Only!
$729.27
Watts backflow preventer Series LF009 lead free assemblies prevent the reverse flow of polluted water from entering into the potable water supply due to back siphon-age and or backpressure.



Technical Specifications

Inlet Port: 1 1/4 inch
Outlet Port: 1 1/4 inch
Max Temperature: 180 degrees F
Min Temperature: 33 degrees F
Max PSI: 175

Product Description

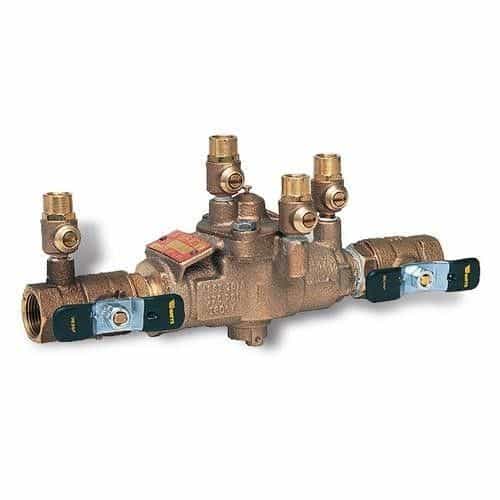

1.25" Reduced Pressure Zone Backflow Preventer

This device consists of lead free cast bronze body, 1 1/4" NPT end connections, quarter turn ball valve shutoffs with tee handles, top mounted test cocks, two in-line independent check valves, captured springs, and replaceable check seats with an internal relief valve for reduced space requirements. Series LF009 is ideal for protection of health hazard cross-connections or for containment at the service line entrance. Check with local water authorities for installation requirements.
Specifications:
  • 1 1/4" inch NPT Inlet
  • 1 1/4" inch NPT Outlet
  • Operating Temperature Range: 33 - 180 Degrees F
  • Maximum Pressure: 175 PSI
  • Lead Free Cast Bronze Body
  • Compact Modular Design
  • Single Access Cover
  • Quarter turn full port seated ball valve shutoffs
