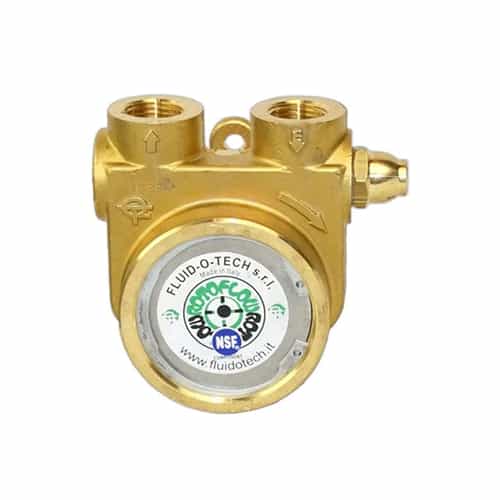

Fluid-O-Tech PA1001F Brass Rotary Vane Pump- 320 GPH, 290 PSI, 1725 RPM
Brand:
Mfr. Model #:
PA1001F
KR Part #:
FTPA1001F
Weight:
2.00 lbs
Usually Ships in 2 Weeks
The PA1001F is a durable Fluid-O-Tech pump with a lead-free brass housing and graphite chamber. Offers 320 GPH along with 290 PSI and 1725 RPM.
Technical Specifications
Max PSI: 290
RPM: 1725
Max Temperature: 158 F
Max GPM: 5.3
Product Description
5.3 GPM Brass Rotary Vane Pump
The PA1001F is one of the many impressive Fluid-O-Tech pumps in their diverse lineup. This specific pump uses a brass housing to complement a graphite chamber. It's a durable, high-performing pump with impressive specifications like 5.3 GPM, a maximum 290 PSI, 1725 RPM, and a peak operating temperature of 158 degrees Fahrenheit. There are 1/2" NPT ports in place, along with Buna-N elastomers to further improve lifespan.
In addition to car wash applications where this pump thrives, it can also handle water filtration systems, fuel injection systems, reverse osmosis systems, cooling and booster systems, plus much more.
Rotary Vane Pump Specifications:
- GPM: 5.3
- PSI: 290
- RPM: 1725
- Max Temperature: 158 F
- Housing Material: Brass
- Chamber Material: Graphite
- 1/2" NPT ports
- Clamp Mount: 4.2 lbs.
- Self-Priming (Water)- Yes
- Mounting: Bolt-On
