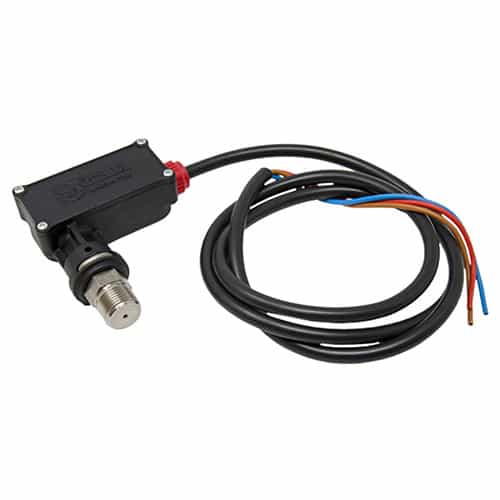

General Pump YPRESSWITCH1535 Pressure Switch - 3600 PSI, 3/8" BSP-M, 15 Amp
Brand:
Mfr. Model #:
YPRESSWITCH1535
KR Part #:
GPPYSWITCH1535
Weight:
0.50 lbs
Usually Ships in 2 Weeks
The General Pump YPRESSWITCH1535 is a 15 amp pressure switch with a switching pressure of 360 PSI and a rated pressure of 3600 PSI. Control on/off operation of components in high-pressure systems when a pressure threshold is reached. Ideal for pressure washing and car washes, it has a 3/8" male pipe inlet commonly found in those applications.
Technical Specifications
Amps: 15
Max PSI: 3600
Voltage DC: 250
Inlet Port: 3/8 inch
Max Temperature: 195 degrees F
Product Description
3600 PSI Pressure Switch
The General Pump YPRESSWITCH1535 Pressure Switch is ideal for controlling on/off operation of components in pressure washing and car wash applications when a pressure threshold is reached. It's quality made with a brass stem and a stainless steel nipple. The YPRESSWITCH1535 boasts a 3/8" male pipe inlet, a size commonly used in pressure washing systems and car washes.
YPRESSWITCH1535 Specifications:
- Rated Pressure: 3600 PSI
- Activated/Switching Pressure: 360 PSI
- Inlet Size: 3/8" BSP-M
- Amps: 15A
- Voltage: 250V
- Maximum Temperature: 195° Fahrenheit
- Brass stem
- Stainless steel nipple
