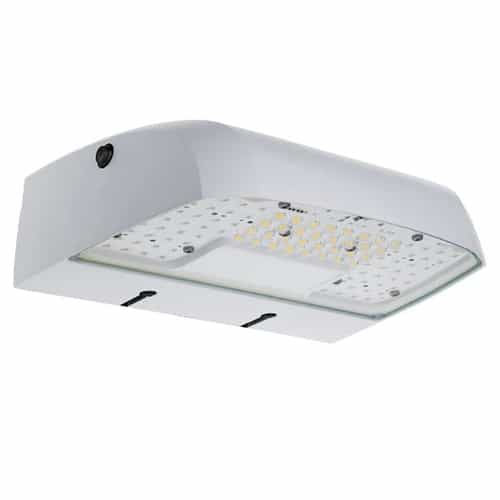

OSQ Series Wall Mount White 27W LED Luminaire

This LED wall mount luminaire is from the OSQ family of lights from Cree. This variant has a sleek white finish and a slim, low-profile design ideal for outdoor wall mounted applications. The rugged lightweight aluminum housing design is intended for excellent protection of the LEDs and includes a weathertight driver compartment and thermal management. This luminaire can be installed over standard single gang J-Boxes and mud ring single gang J-Boxes. It allows for through-wired or conduit entry from the top, bottom, sides and rear. Seamlessly blends into your existing infrastructure. Optic design features industry-leading NanoComfort Technology which provides superior glare reduction and visual comfort with high-efficiency illumination delivered precisely where it is needed.

Item Specifications and Details

• Full Cree Part Number: OSQW-C-4L-57K7-3M-UL-WM-WH
• Lumens: 4,020
• CCT: 5700K
• CRI: 70
• Optic: Type III mid optic
• Voltage: Universal 120-277V
• Wattage: 27W
• Wall mounted
• White finish adds clean, professional aesthetic to your property
• DeltaGuard protective finish
• LED technology minimizes environmental impact and saves you money
• Excellent option to replace older, inefficient halide and fluorescent light fixtures
• Bluetooth, multi-level, and photocell controls available by request
• See spec sheet for advanced details

Applications

• Car Washes
• Convenience Stores
• Gas Stations
• Parking Lots

Regulatory Certifications and Voluntary Qualifications

• cULus Listed
• Suitable for wet locations
• Designed for downlight applications only
• UL924 (EB Option) Maximum mounting height: 20.0’(6.1m)
• Enclosure rated IP66 per IEC 60598
• ANSI C136.2 10kV/5kA (standard) and 20kV/10kA (optional) surge protection, tested in accordance with IEEE/ANSI C62.41.2
• Meets FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
• Certified to ANSI C136.31-2001, 3G bridge and overpass vibration standards
• Luminaire and finish endurance tested to withstand 5,000 hours of elevated ambient salt fog conditions as defined in ASTM Standard B 117
• Lens meets IK09 requirements per IEC 60068-2
• Assembled in the USA by Cree Lighting from US and imported parts
• Meets the requirements for Buy American Act (BAA) because it qualifies as a commercially-available off-the-shelf (COTS) item
• RoHS compliant
• DLC Premium qualified SKUs available. Please contact Cree directly with inquiries.

Warranty Information

Limited Warranty: 10 years for luminaire/10 years for Colorfast DeltaGuard® finish/5 years for BML and ML sensors/up to 5 years for Synapse® accessories/1 year for accessories

Cree Light NanoComfort Technology

Cree Lighting's NanoComfort Technology ends the trade-offs in outdoor lighting by providing superior glare reduction and visual comfort in high efficiency illumination delivered precisely where it is needed. The basic building block of NanoComfort® Technology is a compact 4x4 array of LEDs. Each of the 16 LEDs in a module is in contact with its own acrylic polymer lens to capture and precisely direct light. With NanoComfort® Technology, the acrylic optics are cut and sculpted into facets that relieve the glare and harshness while improving visual comfort – all while retaining superb efficacy and control.
