1000-2500 PSI Valve

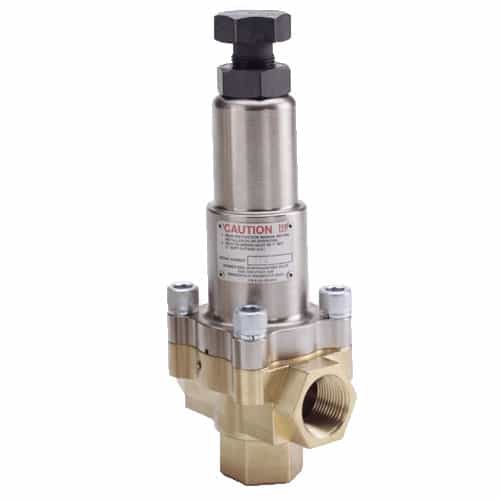

The Hydra-Cell C64 brass valve uses a plunger system to adjust pressure and allow for fluid bypass. The modified flow-through design reduces wear on plungers and seats for great longevity! Plus, the C64 valve is easy to service - remove the top of the valve and replace internal parts. Service can be conducted while the valve is still mounted in place.

Dimensions: 10.64" x 3.08" x 4.30"

• Use with any positive displacement pump
• Flow rate: 1-14 GPM
• Pressure range: 1000-2500 PSI
• 1.25" NPT threaded port size
• Brass valve body
• Viton/Teflon O-rings and diaphragm
• 17-4 HT stainless steel valve seat and plunger
• Hydra-Cell item #C64ABBVSSNH
