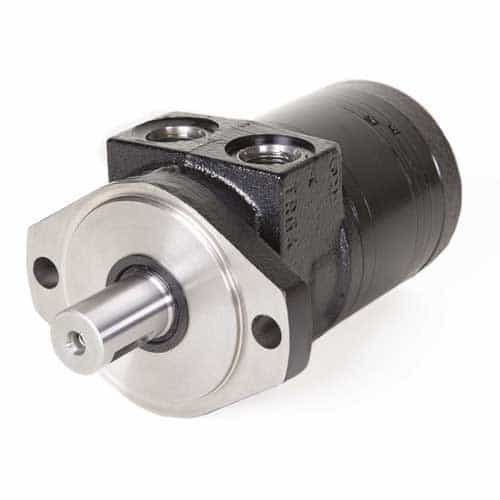

Parker TC0050FS100AAAC TC Series 6.3 HP Hydraulic Torqmotor - 49 CC Displacement

Brand:
Mfr. Model #:
TC0050FS100AAAC
KR Part #:
PM1225
Weight:
12.20 lbs
Availability:
5
Low Stock Warning
MSRP
$1,105.17
Now Only!
$417.54
Compact, low speed, high torque motor for light duty applications.



Technical Specifications

Max PSI: 1750
Horsepower: 6.3
RPM: 688
Shaft Diameter: 1 inch

Product Description

6.3 Horsepower Light Duty Hydraulic Motor

The Parker TC0050FS100AAAC hydraulic motor is part of the TC Series. This high-performance motor provides strong performance in a small package. High-volume fluid flow continually washes across the splines and seals to extend their life. Roller vanes and sealed commutation assure high volumetric efficiency and smooth low-speed operation.

This lighter duty motor is an excellent option for automatic car washes and other harsh environments where motors are frequently exposed to water. Ideal for conveyors, winches, gear boxes, and boom rotators.

Specifications:

  • 1250 PSI continuous duty maximum pressure
  • 1750 intermittent duty maximum pressure
  • 1950 maximum supply pressure
  • 688 RPM maximum speed
  • 423 pounds-inch maximum torque (continuous duty)
  • 589 pounds-inch maximum torque (intermittent duty)
  • 235 pounds-inch minimum starting torque (continuous duty)
  • 349 pounds-inch minimum starting torque (intermittent duty)
  • 49 cubic centimeter displacement
  • 9 GPM maximum oil flow (continuous or intermittent duty)
  • 4 bolt with 3/8-16 thread
  • 7/8-14 SAE ports
  • 1" keyed shaft
  • Standard rotation
  • Double painted

Features:

  • TC Series
  • Robust construction for longer life
  • High pressure shaft seal comes standard
  • Superior side load capacity (Up to 790 lb. at the key)
  • Continuous oil flow across internal splines for longer life
  • DU and sintered copper/steel bushings
  • Smooth, extra low speed operation
  • Innovative design eliminates the need for a case drain
  • Designed and manufactured in Greeneville, TN USA

Markets:

  • Car Wash
  • Aerial
  • Agricultural Machinery
  • Construction Equipment
  • Factory Automation
  • Material Handling Equipment
  • Oil & Gas
  • Food & Beverage

Machine and Device Applications:

  • Conveyers
  • Food Processing
  • Winches
  • Augers
  • Post Hole Augers
  • Snow Removal
  • Salt and Sand Spreaders
  • Boom Rotate
  • Oil and Gas Blender Trucks
