Hydra-Cell D35-X Diaphragm Pump, 36.5 GPM, 1500 PSI

Brand:
Mfr. Model #:
D35XKBTHFECA
KR Part #:
WPD35XKBTH
Weight:
240.00 lbs
Out of Stock - Pre-Order Now
MSRP
$9,500.00
Now Only!
$6,333.54

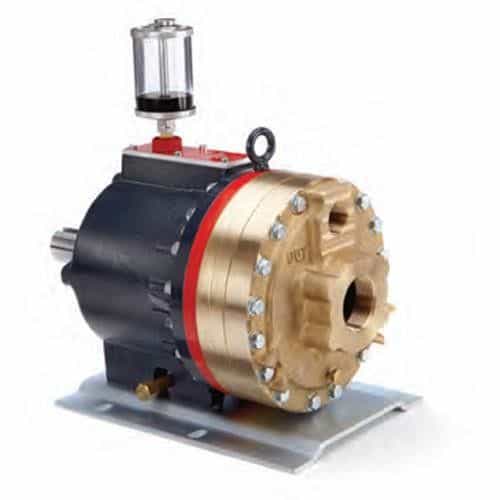

D35 Hydra-Cell Pump features a brass pump head, Buna-N diaphragm and O-rings, and 17-4 Stainless Steel valve and valve seats. Capable and reliable, it offers minimized maintenance and downtime. High flow pump provides 36.5 GPM flow at pressures up to 1500 PSI.
Freight Only

Freight Only




Technical Specifications

Inlet Port: 2 1/2 inch
Max GPM: 37
Max PSI: 250
Max Temperature: 250 degrees F
RPM: 1050
Shaft Diameter: 2 inch

Product Description

Hydra-Cell Model D35XKBTHFECA

D35 series Hydra-Cell Pump features a brass pump head, Buna-N diaphragm and O-rings, and 17-4 Stainless Steel valve and valve seats. Capable and reliable, it offers minimized maintenance and downtime because there are no seals, packing or cups to leak or replace. Tolerates non-ideal operating conditions, and is able to run dry without damage or additional maintenance to the pump in case of accident or operator error. Excellent for car washing, pressure washing, and other high-volume applications.

Features:

  • Pumps the full spectrum of low-to-high viscosity fluids.
  • Features a seal-less design and horizontal disk check valves that enable the pump to handle abrasives and particulates that might damage or destroy other types of pumps.
  • Simple, compact design reduces initial investment and lowers maintenance costs.
  • Operational efficiencies reduce energy costs.

Specifications:

  • Maximum Flow: 36.5 GPM
  • Maximum Pressure: 1500 PSI
  • Maximum Temperature: 250° F
  • Inlet Port: 2-1/2" NPT
  • Discharge Port: 1-1/4" NPT
