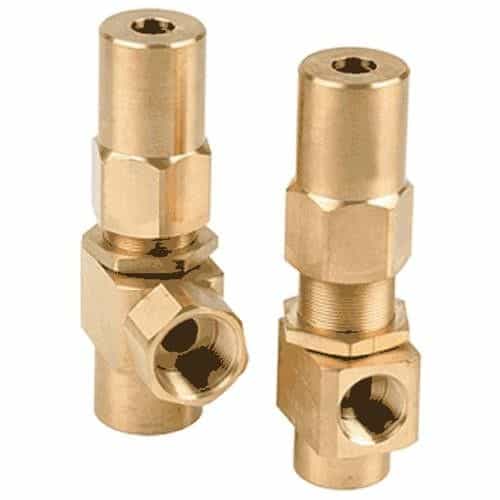

Pressure Relief Valve

This regulator outlasts the life of other brands by up to 5 times longer. Patent pending design allows the regulator to be rebuilt 100% new if needed, without removing it from the system. Balanced design shields the pump system from pressure spikes allowing for smooth transitions. System pressure setting is adaptable to single and multi-gun systems

Specifications:

• For Hypro 2535S & 2545S Pumps
• Inlet Outlet Ports: 3/4" X 1/2"
• Max Psi: 2000
• Max Bar: 138
• Balanced Pressure Psi: 260-2000
• Balanced Pressure Bar: 18-138
• Max Gpm: 53
• Max Lpm: 200

Product Features:

• Longest life pressure regulator available in the industry, out-performing the competition by up to 5 times
• Heavy-duty design for maximum durability
• Patent-pending design lets you rebuild valve to 100% new performance
• New cartridge design allows you to repair the valve without removing it from the system
• Balanced design allows for smooth transitioning from regulating to relief without damaging pressure spikes to the pump system
• Provides system pressure setting and protection for single or multiple gun and pump systems from 20 gpm to 55 gpm
• Two port size options (_" and 1") to easily retrofit into most carwash systems
• Can be setup for use as a pressure regulator or a relief valve
