Diamond H2O DVFP-100 Propel Constant Pressure Booster Pump System with VFD - 5HP, 230/460v

Brand:
Mfr. Model #:
DVFP-100
KR Part #:
DCS7010
Weight:
350.00 lbs
MSRP
$13,998.88
Now Only!
$7,952.77
This DVFP system includes a VFD controller that delivers extremely stable pressure and increases the pump’s lifespan by allowing the pump to wind down instead of abruptly shutting on and off. 5 HP System, 230V/460V, 1 or 3 phase.
Freight Only

Freight Only




Product Description

DVFP Series Variable Frequency Drive

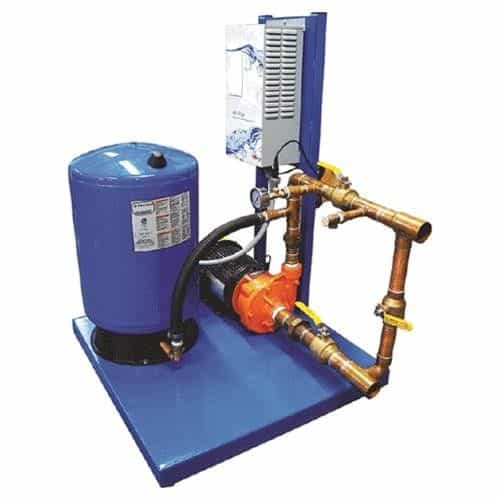

This variable frequency drive (VFD) booster pump is a turnkey, skid mounted system that comes complete with all that's needed, pre-wired and pre-assembled. Includes 5.0 HP cast iron pump and a 19 gallon pressure tank with a copper outlet assembly. It has a pre-installed pressure transducer, shut off and relief valve, too. Provides a flow rate/pressure boost up to 105 GPM @ 40 PSI with a max flow of 110 GPM.

Specifications:

  • 100 PSI transducer
  • IP-56 Rated vented enclosure
  • Power disconnect
  • 19 Gallon pressure tank
  • 20/10 fuses to protect control
  • 230/460v cast iron pump
  • 230/460v VFD control
  • Union included on outlet
  • Adjustable pressure range 0-100 PSI
  • Copper bypass
  • 26" x 30" Pre-assembled skid
  • 2" suction
  • 1.5" discharge
