General Purpose Constant Duty Motor

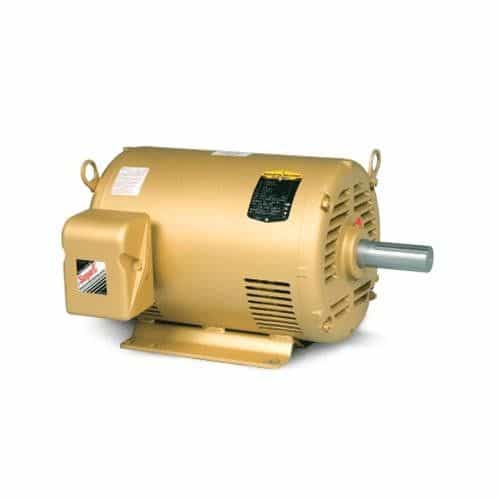

The Baldor EM3212T is a tough, industrial-grade electric motor for applications where the motor is operating continuously or frequently. Designed to conserve energy over extended time periods of use. This 230/460 volt AC motor has an OPSB enclosure and a steel 182T frame. Produces up to 5 horsepower and a maximum speed of 3450 RPM.

Specifications:

• Maximum Horsepower: 5

• Enclosure: OPSB

• Frame: Steel 182T

• Voltage: 230/460AC

• Frequency: 60 Hz

• Phase: 3

• Duty Rating: Continuous

• Speed: 3450 RPM
• Overall Length: 13.62"

• Motor Standards: NEMA

• High Voltage Full Load Amps: 6

• Motor Type:  3622M

• Mounting Arrangement: F1

• Shaft Diameter: 1.125"

• Shaft Extension Location: Pulley End

• Shaft Ground Indicator: No shaft grounding

• Shaft Rotation: Reversible

• Pulley End Bearing Type: Ball

• Pulley Face Code: Standard

• Pulley Shaft Indicator: Standard

• Service Factor: 1.15

• Number of Poles: 2

• Power Factor: 91

• Starting Method: Direct on line

• Synchronous Speed @ Frequency: 3600 RPM @ 60 Hz

• Voltage @ Frequency: 460.0 V @ 60 HZ, 230.0 V @ 60 HZ

• Certifications: UR, CSA EEV, CSA

• Ambient Temperature: 104° Fahrenheit

• Base Indicator: Rigid

• Bearing Grease Type: Polyrex EM (-20F +300F)

• Current @ Voltage: 6.000 A @ 460.0 V, 12.000 A @ 230.0 V, 12.800 A @ 208.0 V

• Design Code: A

• Efficiency at 100% Load: 86.5%

• Front Face Code: Standard

• Insulation Class: F

• Inverter Code: Inverter ready

• KVA Code: K

• Lifting Lugs: Standard

• Locked Bearing Indicator: No Locked Bearing

• Motor Lead Exit: Ko Box

• Motor Lead Termination: Flying leads

• Motor Lead Quantity/Wire Size: 9 @ 16 AWG

• RoHS Status: Compliant

UPC:

• 781568104538
