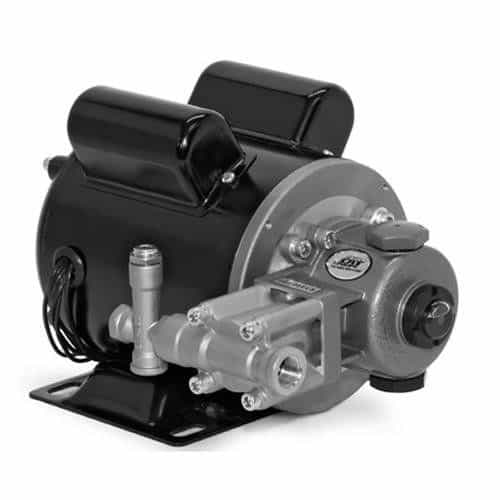

Cat 1CX025RD1P Misting Pump .25GPM, 1000PSI, Single Phase

Mfr. Model #:
KR Part #:
20.64 lbs
Usually Ships in 2 Weeks
Now Only!
This direct drive plunger pump and motor is shipped together, unassembled. Brackets not included!

Technical Specifications

Phase: Single
Voltage AC: 115/230
Shaft Diameter: 1/2 inch
RPM: 1750
Max Temperature: 140 degrees F
Max PSI: 1000
Bore: 16 millimeter
Crankcase Capacity: 2.03 ounce
Max GPM: .25
Inlet Port: 3/8 inch
Horsepower: 1/4

Product Description

.25 GPM Pump and Motor with Pulse Hose

This CAT 1CX025RD1P plunger pump is designed to keep your equipment running smoothly, with a flow rate of 0.25 GPM. This compact, direct drive misting-cooling pump includes a regulator for maintaining pressure. It also includes a pulse hose for minimum pulsation and low amp draw.

This pump has a brass manifold with 304 stainless steel valve assemblies and a solid ceramic plunger. It features standard NBR (Buna-N) seals and o-rings. Plus, it has a 4-position head mounting for flexibility during installation and a 1/4 horsepower, single phase, 60 Hz ODP motor.

Pump Dimensions: 3.62" x 5.12" x 6.85"

  • Pressure range: 100 - 1000 PSI
  • Inlet pressure range: flooded to 60 PSI
  • Includes oil in crankcase
  • 12" leads
  • Regulator and pulse hose included
  • Pump and motor ship together but are unassembled
