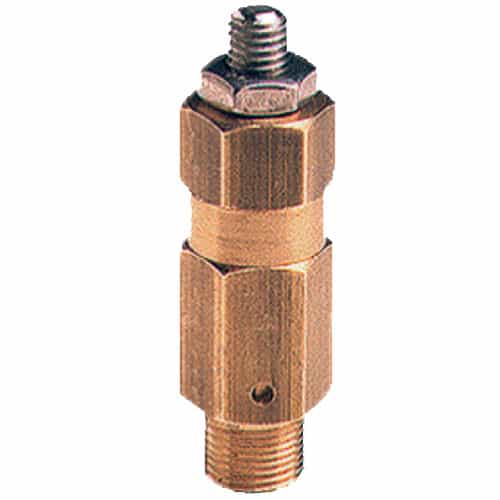

General Pump YRV2063 Safety Relief Valve - 6.3 GPM, 2000 PSI, 3/8 Inch NPT-M Inlet
Brand:
Mfr. Model #:
YRV2063
KR Part #:
GPYRV2063
Weight:
1.50 lbs
A safety relief valve with a side discharging design. It features a 3/8" NPT-M threaded connection. Handles a 2000 PSI and 6.3 GPM.
Technical Specifications
Max PSI: 2000
Max GPM: 6.3
Inlet Port: 3/8 inch
Max Temperature: 140 degrees F
Product Description
3/8" NPTM - Brass Relief Valve
The General Pump YRV2063 is a safety relief valve designed to protect your pump from excessive pressure. Constructed with a brass housing, stainless steel internal components, and Buna-N seals. Inlet connection measures 3/8 inch with NPT-M threading. The valve tolerates a maximum pressure of 2000 PSI and a flow rate of 6.3 GPM. Its dimensions measure 1" x 3.1".Specifications:
- GPM: 6.3
- Max PSI: 2000
- Inlet: 3/8" NPT-M
- Outlet/Discharge: Side
- Temperature: 140° F
- Dimensions: 1” x 3.1”
- Material: Brass, Stainless Steel, Buna-N
- Weight: 1.50 lbs.
