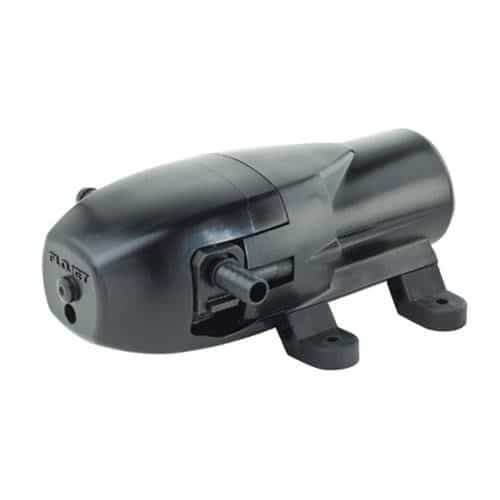

Flojet LFP121421D LF Series Motor Driven Diaphragm Pump - 40 PSI, .7 GPM, 12 VDC, 3/8In. Straight Celcon Hose Barb

Brand:
Mfr. Model #:
LFP121421D
KR Part #:
FP121421
Weight:
1.79 lbs
Low Stock Warning
MSRP
$125.17
Now Only!
$90.71
A reciprocating diaphragm pump for use chemical wash down, fluid transfer and RO filtration systems. Constructed with corrosion resistant materials. Accepts 12 VDC electric connections.
Prep 65

Prop 65




Technical Specifications

Max PSI: 40
Voltage DC: 12
Amps: 2.5
Max GPM: .7
Max Temperature: 110 degrees F
Certifications: CSA
Inlet Port: 3/8 inch

Product Description

Low Flow Diaphragm Pump

Flojet's LFP121421D is part of the LF series pumps used for chemical wash down, fluid transfer and reverse osmosis filtration applications. Pump features a motor driven design house in a polypropylene housing, Viton check valve, stainless steel check valve spring and Santoprene diaphragm. Compatible with 12 VDC electrical connections. Equipped with 3/8" Celcon hose barb 360° quick connect swivel ports for complete freedom of port orientation.

Specifications:
  • Pump Design: Reciprocating diaphragm
  • Maximum Flow Rate: .7 GPM at open flow
  • Duty Cycle: Intermittent
  • Housing Material: Polypropylene
  • Diaphragm: Santoprene®
  • Check Valve Material: Viton®
  • Check Valve Spring: 316 Stainless steel
  • Port Type: Quick disconnect - 3/8" HB Straight
  • Operating Pressure: 40 PSI max (no pressure switch version)
  • Pressure Switch Setting: 40 psi off / 25 psi on
  • Self Priming: Up to 6ft
  • Liquid Temperature: 110°F maximum
  • Motor Type: Permanent magnet motor
  • Motor Voltage: 12 VDC
  • Current for 12 VDC: 2.5 amps @ 25 psi
  • Certifications: CSA
  • Weight: 1.25lbs (0.5kg)
Applications:
  • General Industrial
  • Chemical wash down
  • Evaporative Cooling Systems
  • Fluid Transfer
  • RO Filtration
  • Food & Beverage
  • Food Processing
  • Water Dispense
  • Agricultural
  • Fogging / Misting
  • ATV & Backpack Sprayers
  • Automotive
  • De-watering

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
