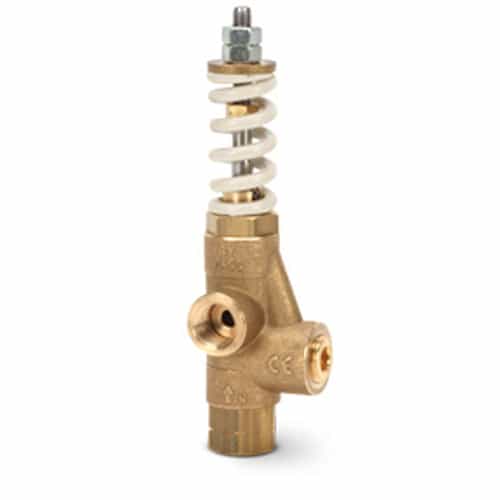

CAT Pumps 7080 Brass Adjustable Pressure Regulator – 3/8 In. NPTF Ports, 7.8 GPM, 1450 PSI
Brand:
Mfr. Model #:
7080
KR Part #:
PU7080
Weight:
1.20 lbs
Usually Ships in 2 Weeks
A regulator designed to maintain the system pressure for single or multiple gun and pump systems. Body is made with brass and a white spring noting the valve’s pressure tolerances. Endures a maximum pressure of 1450 PSI and a flow rate of 7.8 GPM.
Technical Specifications
Max PSI: 1450
Min PSI: 150
Min GPM: 2.5
Max GPM: 7.8
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Bypass Port: 3/8 inch
Max Temperature: 160 degrees F
Product Description
Pressure Sensitive Regulator
CAT Pumps 7080 is a pressure regulator for use with single or multiple pump applications and weep or multi-nozzle systems. Designed to maintain system pressure even when one gun or nozzle is in use or solenoid is open, by-passing the unused flow. For optimum performance 5-10% by-pass is necessary performance. Handles a maximum pressure of 1450 PSI and a maximum flow rate of 7.8 GPM.
Specifications:
- Flow Range: 2.5-7.8 GPM
- Pressure Range: 150-1450 PSI
- Maximum Temperatures: 160°F
- Inlet Port: 3/8" NPTF
- Discharge Port: 3/8" NPTF
- By-Pass Port: 3/8" NPTF
- Material: Brass
- Spring: White
- Weight: 1.20 lbs.
- Dimensions: 3.1 x 2.0 x 6.4"
Features:
- Provides system pressure setting and protection for single or multiple gun and pump systems.
- Compact size and easy installation.
- Immediately returns to system pressure when gun opens.
- Springs are color coded for easy valve identification and simple change from one pressure rating to another.
