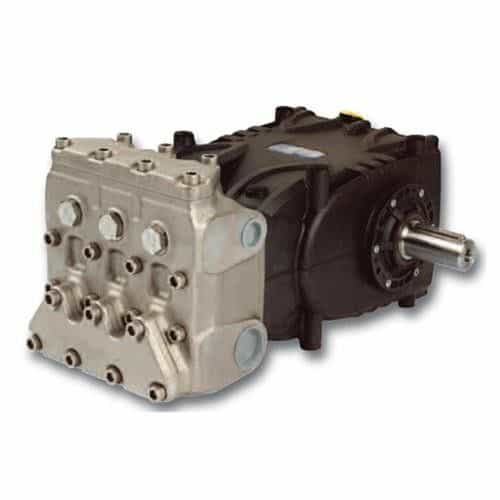

General Pump KF28A Emperor Pump, 24.5 GPM, 3045 PSI, 1000 RPM
Brand:
Mfr. Model #:
KF28A
KR Part #:
GPKF28A
Weight:
150.00 lbs
Next-generation technology in a triplex plunger pump perfect for car wash and pressure wash applications! Redesigned sealing areas feature new spherical design for high volumetric efficiency. Flow of up to 24.5 GPM, at up to 3045 PSI.
Technical Specifications
Bore: 28 millimeter
Crankcase Capacity: 128.5 ounce
Horsepower: 50
Inlet Port: 1 1/2 inch
Max GPM: 24.5
Max PSI: 3045
Shaft Diameter: 40 millimeter
Stroke: 50 millimeter
RPM: 1000
Max Temperature: 140 degrees F
Product Description
General Pump KF Series 24.5 GPM Pump
The KF28A Emperor Pump from General Pump features next-generation technology in a triplex plunger pump perfect for car wash and pressure wash applications! Redesigned sealing areas feature new spherical design for high volumetric efficiency. Durable high-resistance light allow die cast aluminum crankcase and 420 Stainless Steel nickel-treated manifold provide for long life span even in harsh environments. Pair with available SAE-C hydraulic drive bell housing and flexible couplers for easy integration.
Dimensions: 20.7" x 14.5" x 9.9"
Specifications
- Maximum Volume: 24.5 GPM
- Maximum Pressure: 3045 PSI
- Maximum Fluid Temperature: 140º F
- RPM: 1000 RPM
- Inlet Port: 1.5" NPT-F
- Outlet Port: 1" NPT-F
- Shaft Diameter: 40 millimeter
Features
- Patent-pending, symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion
- Low-high pressure packing design with integrated cooling system
- High volumetric efficiency suction/delivery valves featuring new spherical design of sealing areas
Splash lubrication - Solid ceramic plungers, stainless steel valves
- Special antifriction, forger, light allow connecting rods
