Flojet D3131B5011A Duplex Diaphragm Bypass Pump - 60 PSI Bypass, 1.6 GPM, 12 VDC

Mfr. Model #:
KR Part #:
4.18 lbs
Low Stock Warning
Now Only!
This is a two-diaphragm pump that withstands dry runs. Requires 12 VDC power connections. Handles pressure up to 60 PSI.
Prep 65

Prop 65


Technical Specifications

Max PSI: 60
Max GPM: 1.6
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Voltage DC: 12

Product Description

Dry Run Pump

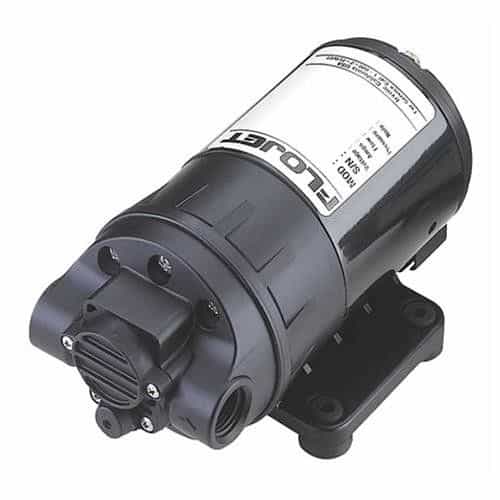

The Flojet D3131B5011A is a double diaphragm pump includes an integrated 12 VDC electric motor. Pump body is made from polypropylene for corrosion and chemical resistance. Self-primes up to 8 feet of vertical lift. Features the ability to run dry without damaging the critical components of the pump and features an internal bypass system protecting the pump from excessive pressures. Drive system utilizes heavy duty ball bearings.


  • Voltage: 12 VDC
  • GPM: 1.6 GPM
  • Max. Pressure: 60 PSI
  • Ports: 3/8" FNPT
  • Material: Polypropylene
  • Diaphragm: Buna-N
  • Check Valve: Buna-N
  • Motor: Electric
  • Weight: 4.18 lbs.


  • Self-priming up to 8 feet (2.4 m)
  • Can run dry without damage
  • Chemical resistant material
  • Internal bypass standard
  • Built-in back flow preventer
  • Heavy duty ball bearing drive system
  • UL, CSA and CE models available
