General Pump EZ2542SL EZ Series 44S Triplex Plunger Pump - 4.2 GPM, 2500 PSI, Left Shaft
Brand:
Mfr. Model #:
EZ2542SL
KR Part #:
GPEZ2542SL
Weight:
18.00 lbs
GTIN:
682491119876
Availability:
1
2500 PSI, 1750 RPM Triplex Plunger Pump ideal for general pressure cleaning and washing applications. Features die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves. 4.2 GPM flow from a compact, left-shaft drive unit.

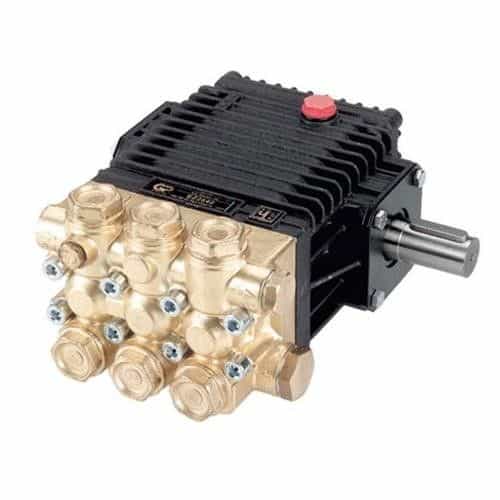

Note: picture shows right shaft, but this is a left hand pump.
Note: picture shows right shaft, but this is a left hand pump.
Technical Specifications
Bore: 18 millimeter
Crankcase Capacity: 14 ounce
Inlet Port: 1/2 inch
Max GPM: 4.2
Max PSI: 2500
Max Temperature: 165 degrees F
RPM: 1750
Shaft Diameter: 24 millimeter
Stroke: 13 millimeter
Product Description
General Pump EZ Series 44 S Pump
Medium-duty Triplex Plunger Pump features solid ceramic plungers, die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves for excellent reliability and durability. Compact design for ease of integration into system. Features 24mm hollow shaft flanged for direct couple to standard motors.Dimensions: 8.6" x 8.7" x 5.5"
Features:
- Solid ceramic plungers
- Left shaft
- Forged brass manifold with an exclusive lifetime warranty and 4:1 hydrostatic rating
- Die-cast, anodized aluminum, oil-bath crankcase
- Premium roller bearing
- Unitized stainless steel inlet and discharge valves
- Flex coupling and bell housing available for direct drive
Specifications:
- Maximum Volume: 4.2 GPM
- Maximum Pressure: 2500 PSI
- Maximum Pump Speed: 1750 RPM
- Maximum Fluid Temperature: 165°F
- Inlet Port: 1/2"-14 BSPP-F
- Outlet Port: 3/8"-19 BSPP-F
