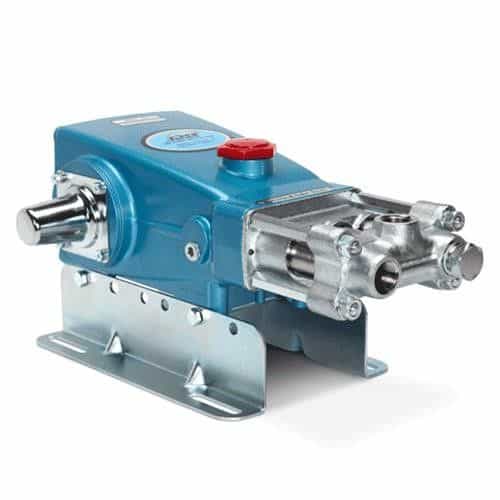

CAT Pumps 820 Brass Manifold Piston Pump - 10 GPM, 1000 PSI

Brand:
Mfr. Model #:
820
KR Part #:
PU00820
Weight:
30.00 lbs
Availability:
4
Low Stock Warning
MSRP
$2,697.00
Now Only!
$1,380.86
Triplex piston pump with chrome-plated brass manifolds, 304 stainless steel valve assemblies, and chrome-plated 304 stainless steel sleeves and cylinders. 1000 PSI, 10 GPM, 1" FNPT inlet x 3/4" FNPT outlet (x3) ports. Brackets not included.



Technical Specifications

Bore: 25 millimeter
Inlet Port: 1 inch
Max GPM: 10
Max PSI: 1000
Max Temperature: 160 degrees F
RPM: 940
Shaft Diameter: 25 millimeter
Stroke: 28 millimeter
Outlet Port: 3/4 inch
Crankcase Capacity: 40 ounce

Product Description

10-Frame Piston Pump

The CAT Pumps 820 is one of the most popular pumps for self-service bays. This is a 10-frame piston pump with a triplex, positive displacement design and chrome plated brass manifolds.

Dimensions: 17.28" x 11.42" x 6.30"

Specifications:
  • 100-1000 PSI pressure range
  • 10 GPM flow rate
  • 940 RPM
  • 1" female NPT inlet
  • 3/4" female NPT discharge ports (x3)
  • .984" (25 mm) bore
  • 1.102" (28 mm) stroke
  • .984" (25 mm) shaft diameter
  • -8.5 to +40 PSI inlet pressure range
  • Buna seals
  • 160° degrees F maximum temperature
  • 40 ounce crankcase capacity
  • 10-frame
  • Weight: 30 lbs.
Features:
  • Triplex Uniflow design provides continuous forward liquid flow for smooth operation
  • Wetted cups and floating pistons are lubricated and cooled by pumped liquid resulting in longer cup life
  • Mechanically-actuated inlet valves create strong lift and an easier prime
  • 100% wetted seal design increases life by allowing pumped liquid to cool and lubricate for longer life
  • Pump comes standard with NBR seals. Alternative seal materials are available for higher temperature or chemical compatibility

Product Reviews

Frequently Asked Questions

Question:what is the part number for the oil seals for this 820 pump? - Ramon (02/17/2020)
Response:The oil seal part number is PU27339
