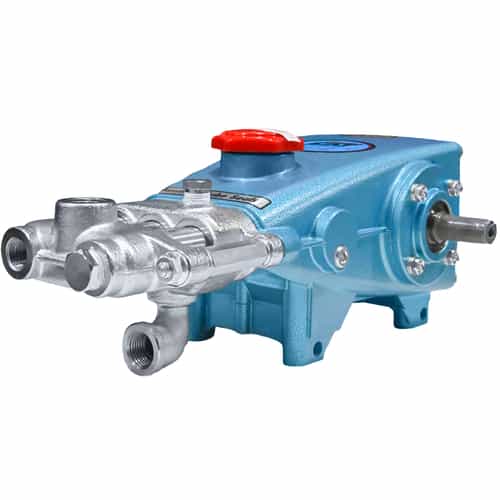

CAT Pumps 430 Four Frame Piston Pump - 1000 PSI, 5 GPM, 1040 RPM

Brand:
Mfr. Model #:
430
KR Part #:
PU00430
Weight:
14.80 lbs
GTIN:
814338021558
Availability:
4
Low Stock Warning
MSRP
$1,580.00
Now Only!
$808.96

A triplex piston pump with components made with corrosion-resistant materials. Used for belt-driven applications in car washes and other industries. The CAT 430 pump produces a flow rate of 5.5 GPM.

Note: Brackets not included.




Technical Specifications

Bore: 20 millimeter
Crankcase Capacity: 21 ounce
Stroke: 19.5 millimeter
Shaft Diameter: 16.5 millimeter
Inlet Port: 1/2 inch
Max GPM: 5
Max PSI: 1000
RPM: 1040
Max Temperature: 160 degrees F
Outlet Port: 3/8 inch

Product Description

Positive Displacement Pump

The Cat Pump model 430 is a triplex piston pump designed for belt-driven applications. Chrome-plated brass manifold, 304 stainless steel valve assemblies, chrome-plated 304 stainless steel sleeves, and cylinders provide superior corrosion for longevity with harsher chemicals used in car washes. The CAT 430 pump delivers a maximum flow rate of 5.5 GPM and endures a maximum pressure of 1000 PSI. This pump’s shaft handles a maximum speed of 1040 RPM. The inlet connection measures 1/2" NPTF and the discharge port measures 3/8" NPTF.

Specifications:

  • Max Flow: 5 GPM / 18.9 LPM
  • Max Pressure: 1000 PSI
  • Inlet Port Size: 1/2" NPT(F)
  • Discharge Port Size: 3/8" NPT(F)
  • RPM: 1040
  • Drive Type(s): Belt, Clutch
  • Material: Brass
  • Bore 0.709"
  • Shaft Diameter: 0.650"
  • Max. Liquid Temperature (NBR) 160° F
  • Crankcase Capacity: 21 oz.
  • Pulley Mounting: Either Side
  • Valve Assemblies: 304 Stainless Steel
  • Cylinders: Chrome Plated 304 Stainless Steel
  • Sleeves: 304 Stainless Steel
  • Seals: NBR (Buna-N)
  • O-Rings: NBR (Buna-N)
  • Dimensions: 12.56" x 8.80" x 5.33"
