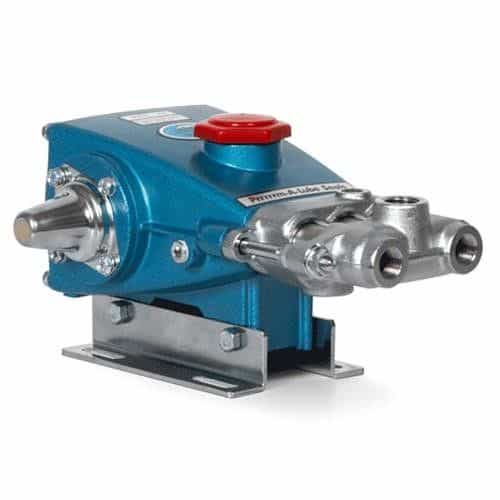

CAT Pumps 290 Triplex Piston Pump - 3.5 GPM, 1200 PSI, 1200 RPM

Brand:
Mfr. Model #:
290
KR Part #:
PU00290
Weight:
12.20 lbs
GTIN:
814338021527
In Stock
MSRP
$1,119.00
Now Only!
$572.93
This 3-frame piston pump delivers a flow rate of 3.5 GPM. Uniflow engineering creates continuous forward fluid flow for smooth operation. Endures 1200 PSI.



Technical Specifications

Crankcase Capacity: 10 oz.
Max PSI: 1000
Max GPM: 3
Inlet Port: 1/2 inch
Max Temperature: 160 degrees F
Bore: 20 millimeter
Stroke: 10 millimeter
Shaft Diameter: 16.5 millimeter
RPM: 1200

Product Description

3-Frame Piston Pump

The CAT Pumps 290 is 3-Frame pump with Uniflow engineering that features a mechanically actuated inlet valve providing a continuous forward fluid flow and strong suction for efficient operation. It provides a flow rate of 3.5 GPM and endures a maximum pressure of 1200 PSI. Features NBR seals for chemical resistance.
Cups and pistons are lubricated and cooled by the pumped liquid to increase the life of these components and the seals.

Specifications:
  • Max Flow: 3.5 GPM
  • Max Pressure: 1200
  • Inlet Port Size: 1/2" NPT(F)
  • Discharge Port Size: 3/8" NPT(F)
  • RPM: 1200
  • Crankcase Capacity: 10 oz.
  • Max. Liquid Temperature (NBR): 160° F
  • Inlet Pressure Range: -8.5 to 40 PSI
  • Inlet Port: (1) 1/2" NPT(F)
  • Auxiliary Port: (1) 1/4" NPT(F)
  • Discharge Ports: (2) 3⁄8" NPT(F)
  • Discharge Port: (1) 1/2" NPT(F)
  • Pulley Mounting: Either Side
  • Drive Type(s): Belt, Clutch
  • Shaft Diameter: 0.650"
  • Material: Brass
  • Dimensions: 10.83 x 8.79 x 5.30"
Features:
  • Triplex Uniflow design provides continuous forward liquid flow, promoting smooth operation.
  • Wetted cups and floating pistons are lubricated and cooled by pumped liquid, resulting in longer cup life.
  • Mechanically-actuated inlet valves create strong lift and an easier prime.
  • Optional 316 stainless steel manifolds provide added corrosion resistance.
  • Pump comes standard with NBR seals.
  • Alternative seal materials are available for higher temperature or chemical compatibility.
