General Pump EZ3042SL Brass Triplex Plunger Pump, Left Shaft - 4.2 GPM, 3000 PSI, 1750 RPM
Brand:
Mfr. Model #:
EZ3042SL
KR Part #:
GPEZ3042SL
Weight:
18.00 lbs
GTIN:
682491141709
An EZ Series 44 S pump with a left handed shaft from General Pump. It features an oil-bath crankcase for constant lubrication. Delivers a maximum flow rate of 4.2 GPM.
Technical Specifications
Bore: 18 millimeter
Crankcase Capacity: 14 ounce
Max PSI: 3000
Inlet Port: 1/2 inch
Max GPM: 4.2
Max Temperature: 165 degrees F
Shaft Diameter: 24 millimeter
Stroke: 13 millimeter
RPM: 1750
Product Description
Left Shaft EZ Series 44 S Pump

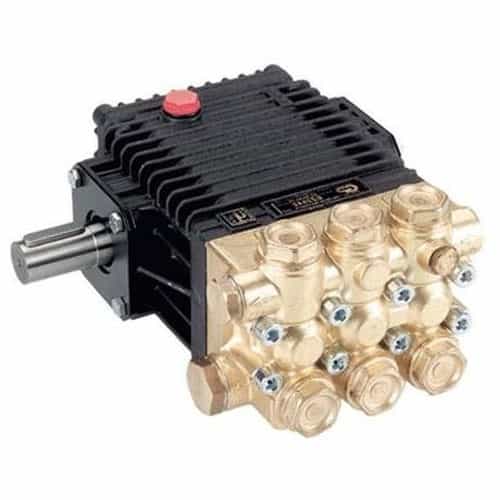

The General Pump EZ3042S is a triplex plunger pump equipped with solid ceramic plungers and an oil-bath crankcase made with die-cast anodized aluminum. The forged brass manifold features a 4:1 hydrostatic rating. Designed to handle a maximum pressure of 3000 PSI and a speed of 1750 RPM. The pump produces a maximum flow rate of 4.2 GPM. It's shaft is located on the left side.Specifications:
- GPM: 4.2
- PSI: 3000
- RPM: 1750
- Stroke:.512 in./13 mm
- HP: 8.6 EBHP
- Maximum Inlet Pressure 125 PSI
- Maximum Inlet Vacuum: 9 ft. water (7.9 in. Hg)
- Plunger Bore: 0.708 in./18 mm
- Crankcase Oil Capacity: 14.0 oz.
- Maximum Fluid Temperature: 165 Degrees F
- Inlet Port Thread: 1/2-14 BSPP-F
- Discharge Port Thread: 3/8-19 BSPP-F
- Shaft Diameter: .945 in. / 24 mm
- Shaft: Left Side
- Weight 18 lbs.
- Dimensions 8.6 in. x 8.7 in. x 5.5 in.
- GTIN: 682491141709
- Solid ceramic plungers
- Flex coupling and bell housing available for direct drive
- Forged brass manifold with a 4:1 hydrostatic rating
- Die-cast, anodized aluminum, oil-bath crankcase
- Premium roller bearing
- Unitized stainless steel inlet and discharge valves
