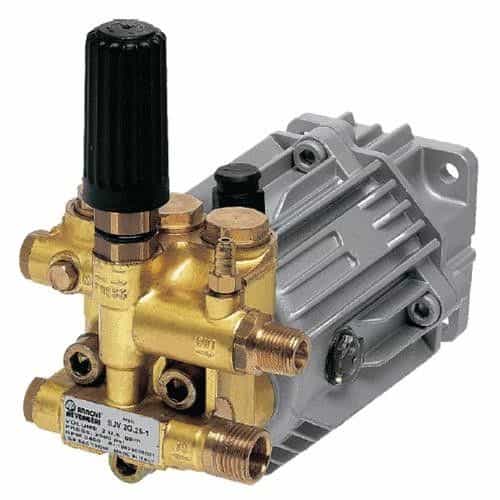

AR North America SJV2.5G27D-F7 Pump 2.5GPM 2700PSI
Brand:
Mfr. Model #:
SJV25G27D-F7
KR Part #:
ARSJV25G27D-F7
Weight:
0.06 lbs
Availability:
1
Out of stock - Pre-Order Now!
Manuals
3400 RPM axial radial pump designed for medium duty loads. Built-in unloader optimizes performance while reducing setup time. Flow of up to 2.5 GPM, at pressures up to 2700 PSI.
Technical Specifications
Crankcase Capacity: 4.5 oz.
RPM: 3400
Max GPM: 2.5
Max PSI: 2700
Inlet Port: 1/2 inch
Max Temperature: 140 degrees F
Bore: 15 millimeter
Stroke: 5.8 millimeter
Shaft Diameter: 3/4 inch
Product Description
AR North America Axial Radial Pump
This AR pump is designed for medium duty loads. It spins at 3400 RPM in a direct drive system coupled with a gasoline engine, the matching flange provides convenient connections to most 3/4" shaft 3.5 - 6.5 HP engines. Optional vertical and horizontal setups. Precision die-cast crankcase with large cooling fins for maximum heat dissipation. Seals and V-Packings designed to continuously lubricate for extended life. Built-in unloader to optimize performance while reducing setup time. Integral trap pressure with fixed or adjustable chemical injector.
Specifications:
- Max. Volume: 2.5 GPM
- Max. Discharge Pressure: 2,700 PSI
- Max. Pump Speed: 3,400 RPM
- Shaft Diameter: 3/4” Hollow
- Maximum Horsepower Requirements: 6.0 GHP
- Max. Fluid Temp.: 140º F.
- Inlet Port: 1/2" Male
- Discharge Port: 3/8" Male
- Auxiliary Port: 1/4" Female
- Built In unloader and chemical injector
- Forged brass head & valve covers
- Solid ceramic plungers
- Weight: 11.0 lb.
