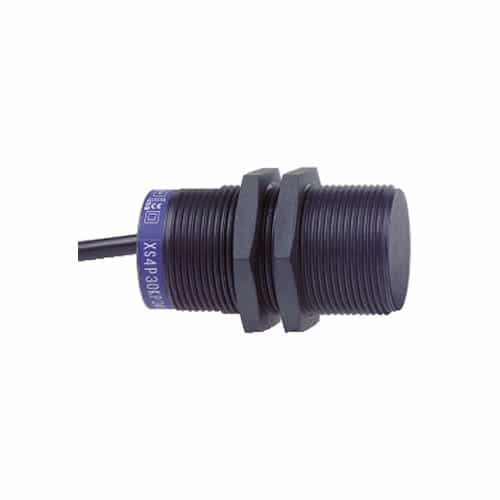

Telemecanique OsiSense XS4P30PA370L2 Inductive Proximity Sensor - 62mm
Brand:
Mfr. Model #:
XS4P30PA370L2
KR Part #:
STP2180
Weight:
1.01 lbs
GTIN:
338911047049
General purpose sensor for wet environments. Handles immersion in water. Ideal for car washing, beverage production, and machining.
Technical Specifications
Certifications: IP68, UL, CCC, CSA
Max Temperature: 158 degrees F
Voltage DC: 58
Product Description
PNP Output Sensor with 2M Cable
The Telemecanique OsiSense XS4P30PA370L2 inductive proximity sensor is for general use applications and has a fixed, plastic body. It has a discrete output signal and a nominal sensing distance of 15mm. Thanks to its double insulated, IP68 rating, it can handle long term immersion in water. This sensor is ideal for use in a variety of wet applications including car washing, beverage production, machining, and more!
Note: 2M cable included.
Length: 30mm x 62mm
- M30 x 1.5 thread type
- Threaded length: 52mm
- Frontal detection face
- PvR insulated wire
- 1 yellow status output LED
- Non flush mountable
- 3 wire design
- 15mm nominal sensing distance
- DC output circuit
- PNP discrete output
- Cabled (10m) electrical connection
- Maximum ambient air temperature: 158° Fahrenheit
- Telemecanique part #XS4P30PA370L2
- Weight: 1.01 lb.
