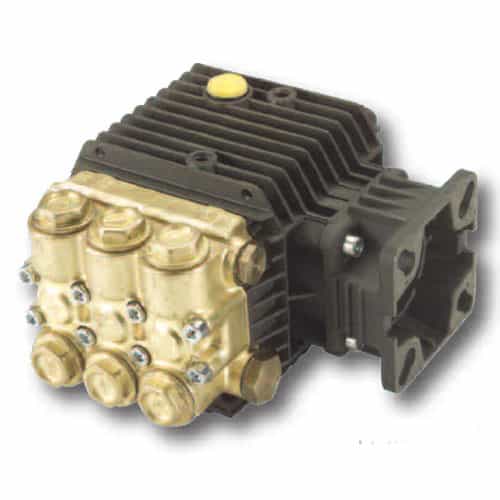

General Pump TT1540GBF TT Series 51 Triplex Plunger Pump - 4.0 GPM, 1500 PSI
Brand:
Mfr. Model #:
TT1540GBF
KR Part #:
GPTT1540GBF
Weight:
11.40 lbs
GTIN:
682491119333
Call For Availability
Manuals
The TT Series 51 triplex plunger pump is manufactured for direct coupling to gasoline engines. It has a 3/4" hollow shaft.
Technical Specifications
RPM: 3400
Bore: 15 millimeter
Crankcase Capacity: 11.2 ounce
Horsepower: 6.2
Inlet Port: 3/8 inch
Max Temperature: 165 degrees F
Shaft Diameter: 19 millimeter
Stroke: 9.4 millimeter
Max PSI: 1500
Max GPM: 4
Product Description
TT Series 51, GBF Triplex Plunger Pump For Gasoline Engines
The TT1540GBF comes standard with an SAE J609 gasoline engine mounting flange - ready for use with a wide range of pressure washers. It has a die-cast anodized aluminum, 11.2 oz. capacity oil-bath crankcase. This TT Series 51 pump has solid ceramic plungers with continuously lubricated packings. The long-lasting, forged brass manifold is backed by General Pump's exclusive lifetime warranty. Also available in left-handed versions.
Applications:
- Ideal for general cleaning and pressure washing
Pump Dimensions: 7.2" x 7.2" x 5.5"
- 4.0 GPM, 1500 PSI
- Original interpump unitized, stainless steel K01 inlet and outlet valves
- Maximum Inlet Pressure: 125 PSI
- Maximum Inlet Vacuum: 3 ft. water
- Maximum Fluid Temperature: 165 degrees Fahrenheit
- .591 inch/ 15mm bore
- .370 inch/9.4mm stroke
- 3/4 inch / 19mm hollow shaft
- Ship Weight: 11.4 lbs.
