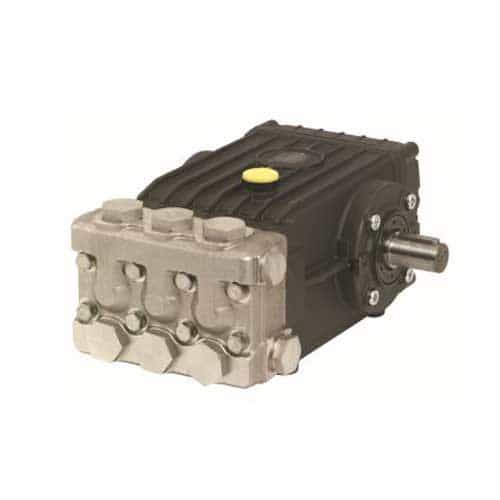

General Pump TS2012SS Series 47 316 Stainless Steel Plunger Pump - 4.0 GPM, 3000 PSI, 1450 RPM
Brand:
Mfr. Model #:
TS2012SS
KR Part #:
GPTS2012SS
Weight:
31.00 lbs
GTIN:
682491120285
This General Pump TS series pump has over-sized connecting rods for maximum life. Features ceramic plungers and high-tech packings. 316 Stainless Steel forged manifold for maximum corrosion resistance. Produces up to 7.6 GPM at 3000 PSI.
Technical Specifications
Max PSI: 3000
RPM: 1750
Crankcase Capacity: 40.6 ounce
Inlet Port: 1/2 inch
Max Temperature: 185 degrees F
Shaft Diameter: 24 millimeter
Max GPM: 4
Outlet Port: 3/8 inch
Bore: 20 millimeter
Stroke: 12 millimeter
Product Description
3000 PSI General Pump
The General Pump TS2012SS 47 Series triplex pump is the preferred pump frame in the pressure cleaning industry. It is a mid-volume, high-pressure pump built for rigorous duty cycles, high temperatures, and chemicals. Features solid ceramic plungers and high-tech packings. 316 Stainless Steel manifold features lifetime warranty. Ideal for pressure washing, as well as use in car washing, reverse osmosis, misting, and for use in industrial plant systems where hot water is required.
Dimensions: 12.25" X 9.2" X 6.9"
Features:
- 316 stainless steel manifold for maximum corrosion resistance.
- The preferred pump frame in the industry.
- Solid ceramic plungers with continuously lubricated packings.
- Oversized connecting rods for maximum life.
- Patented "high tech" low and seals.
Specifications:
- Max GPM: 4.75
- Max PSI: 3000
- RPM: 1750
- Max Temp: 185 degrees
- Inlet Port: 1/2"-14 BSP-F
- Outlet Port: 3/8"-19 BSP-F
