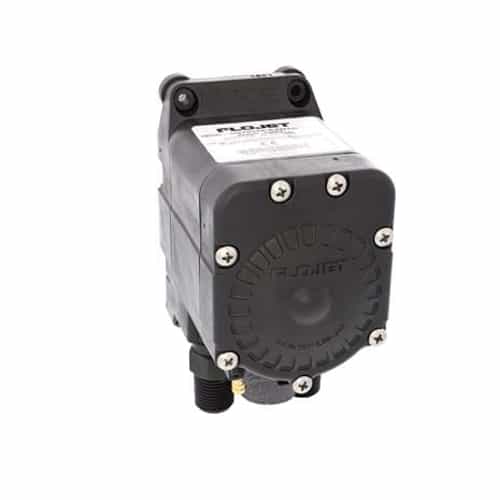

Flojet G573185A Viton Duplex Diaphragm Pump - 1/4 Inch Ports, 100 PSI, 5 GPM

Brand:
Mfr. Model #:
G57320GA
KR Part #:
FP57320G
Weight:
1.60 lbs
Availability:
5
Low Stock Warning
MSRP
$315.83
Now Only!
$228.87

This is a duplex diaphragm pump. Designed for general industrial applications. Viton construction resists acids, oils, solvents and d-limonene.

Caution:
Do not pump gasoline or flammable liquids or use where flammable vapors are present. If used with C02 or N2 be sure the area is well ventilated. This pump is not submersible.

Prep 65

Prop 65




Technical Specifications

Max Temperature: 120 degrees F
Max GPM: 5
Max PSI: 100
Inlet Port: 1/4 inch
Outlet Port: 1/4 inch

Product Description

Gas Powered Industrial Pump

This self-priming double diaphragm pump should be mounted in a dry and well-ventilated area. Designed for general commercial and industrial applications. Manufactured using Viton for chemical resistance. For applications that involve oils, solvents, d-limonene, aromatic & halogenated hydrocarbons and acids.

Specifications:

  • Powered By: Air, C02 or N2
  • Liquid Temperature:
    • Minimum: 40°F (4.4°C)
    • Maximum: 120°F (48.9°c)
  • Priming:
    • Dry: 15 ft. (4.5 m)
    • Wet: 20 ft. (6.1 m)
  • Wetted Parts:
    • Diaphragm Material: Viton¨
    • Check Valve Seat Material: Viton¨
    • Housing and Check Valve Material: Polypropylene (Glass Reinforced)
    • Springs: Hastelloy
  • Maximum Flow Rate: Up to 5 GPM
  • Gas Supply Pressure: 20 to 100 PSI
  • Maximum Noise Level: 87dB
  • Ports:
    • Gas Inlet & Outlet 1/4"
    • Product Inlet 3/8"  - 1/2" - 3/4"
    • Product Outlet 3/8" - 1/2" - 3/4"
  • Compatible Chemicals:
    • Oils
    • Solvents
    • D-Limonene
    • Aromatic & Halogenated Hydrocarbons and Acids
    • Non-Compatible Fluids:
    • Ketones
    • Acetones
    • Automotive Brake Fluid
    • Ammonia
    • Ethanol

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
