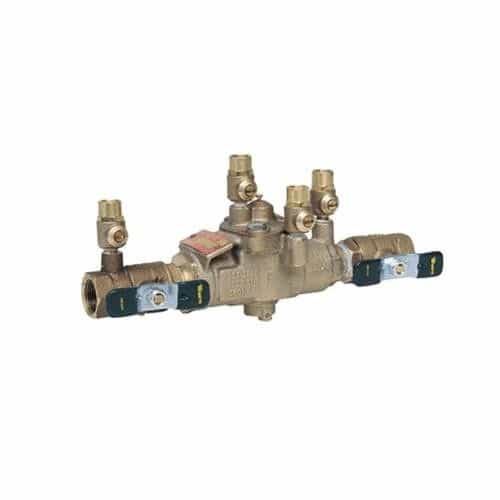

USE WBF009QTS12-FS Watts LF009M3-QT Small Series Reduced Pressure Zone Assembly Backflow Preventer - .75 Inch

Mfr. Model #:
3/4 LF009M3-QT -S
KR Part #:
13.00 lbs
Usually Ships in 2 Weeks
Now Only!
3/4-inch NPT inlet and outlet. Prevents polluted water from entering a potable water supply. Complies with water authority requirements.

Product Description

Backsiphonage Preventer

Inlet and outlet have 3/4-inch NPT end connections. Body is constructed with lead-free bronze. Uses quarter turn ball valve shutoffs with tee handles. Prevents polluted water from entering a potable water supply due to back siphonage. Manufactured to comply with national plumbing codes and water authority requirements.


  • Backflow Preventer Type: Reduced Pressure Zone Assembly
  • Body Finish: Cast Bronze
  • Body Material: Lead-Free Bronze
  • Body Pattern: Inline
  • Brand: Watts
  • Buy American Act Compliant: Yes
  • Disc Material: Silicone
  • EAN: 098268051117
  • Elbow Fitting: No
  • GDS Status: Registered
  • Hazard Protection Level: Health Hazard
  • Inlet Connection Size: 3/4 IN
  • Inlet Connection Size-Metric: 20 MM
  • Inlet Connection Type: Female Threaded
  • Inlet Shutoff Valve Type: Quarter Turn Ball Valve
  • Inlet Thread Type: NPT
  • Lead Free: Yes
  • Maximum Temperature: 180 Fahrenheit
  • Maximum Working Pressure: 12.00 BAR
  • Maximum Working Pressure: 175 PSI
  • Minimum Temperature: 0.50 Celsius
  • Minimum Temperature: 33 Fahrenheit
  • Outlet Connection Size: 3/4 IN
  • Outlet Connection Type: Female Threaded
  • Outlet Shutoff Valve Type: Quarter Turn Ball Valve
  • Outlet Thread Type: NPT
  • Part Number: 0391003
  • Pressure Operation: Continuous
  • Protection Type: Backpressure and Backsiphonage
  • Seat Material: Engineered Plastic
  • Series: LF009
  • Type: Kit


  • Quarter turn full port resilient seated ball valve shutoffs
  • Captured springs for safe maintenance
  • Single access cover and modular check construction for the ease of maintenance
  • NPT inlet and outlet connections
  • Large body passages provide a low pressure drop
  • Test cocks are screwdriver slotted
  • Internal relief valve for reduced installation clearances
  • Replaceable seats for an economical repair
  • Lead-free bronze body construction for durability
