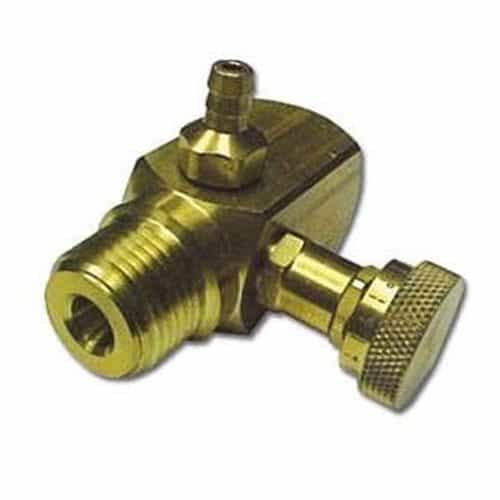

Spraying Systems 50580-1/2NPT-25 Adjustable Brass Siphon Injector - 1/2 Inch NPT MxF, 1/4 Inch Hose Barb, 3000 PSI, 2.5 GPM
Brand:
Mfr. Model #:
50580-1/2NPT-25
KR Part #:
SSI50588-25
Weight:
0.68 lbs
An adjustable chemical injector. Makes adding chemicals to fluid lines easy. Compatible with a maximum flow rate of 2.5 GPM.
Technical Specifications
Max GPM: 2.5
Max PSI: 3000
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Product Description
2.5 GPM - Adjustable Injector
The Spraying Systems 50580-1/2NPT-25 is a chemical injector designed to make adding chemicals to your liquid flow in car wash and pressure washing applications. An adjustable metering screw allows you to easily adjust the injection rate to match the recommended dilution ratio of the chemical being used. Brass construction is engineered to tolerates a maximum pressure of 3000 PSI. This model handles a maximum flow rate of 2.5 GPM. Equipped with 1/2 inch male x female NPT connections and a 1/4 hose barb.Specifications:
- Max Pressure: 3000 PSI (207 BAR)
- Capacity: 2.5 GPM
- Liquid Inlet and Outlet Connections: 1/2" NPT
- Standard Hose Barb Connection Injection Inlet: 1/4" NPT
- Materials: Brass
- Provide a convenient method for adding chemicals to liquid flow before spraying
- Siphon rate is controlled with a metering screw
