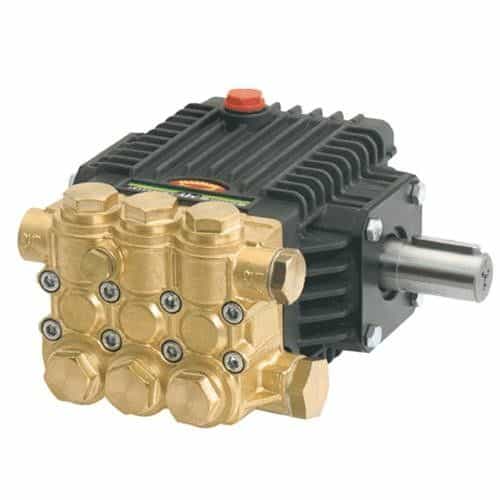

General Pump TC1509S17 Series 60 Plunger Pump 2.1GPM, 2500PSI, Right Shaft
Brand:
Mfr. Model #:
TC1509S17
KR Part #:
GPTC1509S17
Weight:
15.20 lbs
GTIN:
682491119401
Manuals
Featuring a compact design for easy integration even in tight pump rooms, the TC 60 Series triplex plunger pump is an excellent fit for car wash, agriculture, and pressure washing applications. Features new generation seal system and oversized bearings for long operational life. Up to 2.1 GPM and up to 2500 PSI, solid right side shaft.
Technical Specifications
Bore: 15 millimeter
Crankcase Capacity: 11.8 ounce
Max PSI: 2500
Horsepower: 3.6
Max GPM: 2.1
Inlet Port: 1/2 inch
RPM: 1750
Max Temperature: 165 degrees F
Shaft Diameter: 24 millimeter
Stroke: 9.4 millimeter
Product Description
TC 60 Series Plunger Pump with Right Side Shaft
Featuring a compact design for easy integration even in tight pump rooms, the TC 60 Series triplex plunger pump with right side solid shaft is an excellent fit for car wash, agriculture, and pressure washing applications. Features new generation seal system and oversized bearings for long operational life. Easy to adjust pressure for precise control, while no moving parts in manifold provide for reduced wear. Forged brass manifold, fully anodized crankcase and anti-freeze bushing reduce wear and tear to offer long service life.
Dimensions: 7.6" x 8.0" x 4.9"
Specifications
- Max Volume: 2.1 GPM
- Max Pressure: 2500 PSI
- Maximum Pump Speed: 1450 RPM
- Maximum Fluid Temperature: 165°F
- Bore: 15 mm
- Stroke: 9.4 mm
- Crank Case Capacity: 11.8 oz.
- Inlet Port: 1/2 - 14 BSP-F
- Outlet Port: 3/8 - 19 BSP-F
