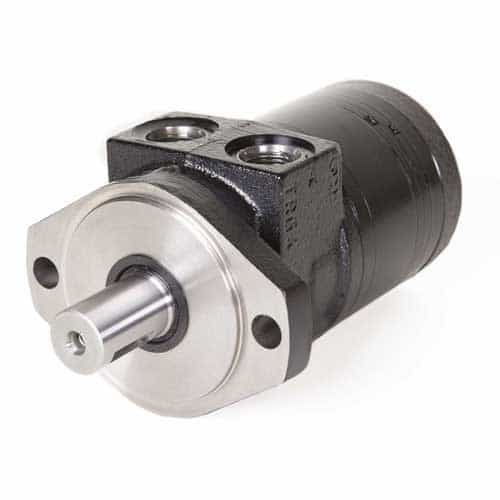

Parker TB0100FP100AAAC TB Series 13.8 HP Hydraulic Torqmotor - 98 CC Displacement

Brand:
Mfr. Model #:
TB0100FP100AAAC
KR Part #:
PM1175
Weight:
16.50 lbs
In Stock
MSRP
$558.20
Now Only!
$358.38
Use a hydraulic style motor for light duty applications where low speed and high torque is required.



Technical Specifications

Horsepower: 13.8
Inlet Port: 1/2 inch
Max PSI: 2400
RPM: 454
Shaft Diameter: 1 inch

Product Description

163 Cubic Centimeter High Torque Motor

The Parker TB0100FP100AAAC hydraulic motor is part of the TB Series. This low speed, high-torque (LSHT) motor is a rugged orbital motor built to have a long life and superior side load capacity. High-volume fluid flow continually washes across the splines and seals to extend their life. Roller vanes and sealed commutation assure high volumetric efficiency and smooth low-speed operation.

This economical light duty motor is an excellent option for automatic car washes and other harsh environments where motors are frequently exposed to water. Ideal for use with machines like conveyors, winches, gear boxes, and augers.

Specifications:

  • 1800 PSI continuous duty maximum pressure
  • 2400 PSI intermittent duty maximum pressure
  • 2750 PSI maximum supply pressure
  • 454 RPM maximum speed
  • 1411 pounds-inch maximum torque (continuous duty)
  • 1917 pounds-inch maximum torque (intermittent duty)
  • 1050 pounds-inch minimum starting torque (continuous duty)
  • 1400 pounds-inch minimum starting torque (intermittent duty)
  • 98 cubic centimeter displacement
  • 12 GPM maximum oil flow (continuous duty)
  • 12 GPM maximum oil flow (intermittent duty)
  • 13.8 horsepower
  • 4 bolt with 3/8-16 UNC mounting
  • 1/2-14 NPTF
  • 1" keyed shaft
  • Standard rotation
  • Double paint

Features:

  • TB Series
  • Robust construction for longer life
  • High pressure shaft seal comes standard
  • Superior dynamic side load capacity (Up to 1100 lb. at the key)
  • Continuous oil flow across internal splines for longer life
  • DU and sintered copper/steel bushings
  • Smooth, extra low speed operation
  • Innovative design eliminates the need for a case drain
  • Designed and manufactured in Greeneville, TN USA

Markets:

  • Car Wash
  • Aerial
  • Agricultural Machinery
  • Construction Equipment
  • Factory Automation
  • Material Handling Equipment
  • Oil & Gas
  • Food & Beverage

Machine and Device Applications:

  • Conveyors
  • Gear Boxes
  • Boom Rotate
  • Food Processing
  • Winches
  • Augers
  • Portable Irrigation Systems
  • Post Hole Diggers
  • Specialty Harvesters
  • Header Drives
  • Snow Removal
  • Salt and Sand Spreaders
  • Oil and Gas Blender Trucks
  • Car Washes
  • Bulk Feed Trucks
