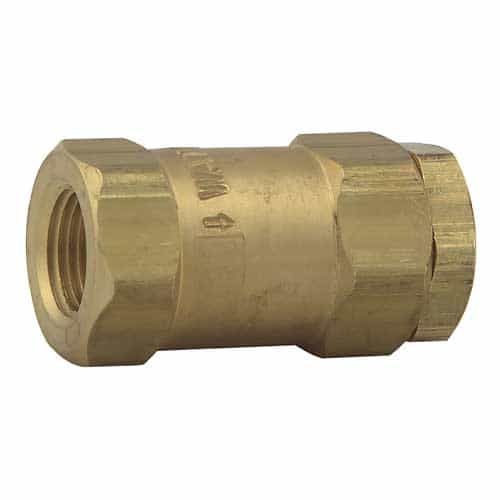

3/4 Inch Check Valve

Watts 0123069 is a check valve manufactured with a lead-free copper silicon alloy straight body, elastomer seat that handle a maximum pressure of 200 PSI. Features a positive back stop and a unique positive check module. Prevents damage caused by water hammer in piping systems. Operates when mounted vertically or horizontally.

Specifications:

• Body Material: Lead Free Copper Silicon Alloy

• Body Pattern: Straight

• Brand: Watts

• Class Rating: Does Not Apply to Product

• EAN: 098268653182

• Inlet Connection Size: 3/4 IN

• Inlet Connection Size-Metric: 19 MM

• Inlet Connection Type: Female Threaded

• Inlet Thread Type: FPT

• Lead Free: Yes

• Maximum Operating Temperature-Celsius: 82.00

• Maximum Operating Temperature-Fahrenheit: 180

• Maximum Working Pressure-PSI: 200

• Minimum Temperature - Celsius : -18.00

• Minimum Temperature-Fahrenheit: 0

• Outlet Connection Size: 3/4 IN

• Outlet Connection Type: Female Threaded

• Outlet Thread Type: FPT

• Part Number: 0123069

• Pressure-Temperature Rating-BAR: 13.8 BAR at 82 degree C

• Series: LF6

• WOG Rating: 200 PSI


Features:

• NPT female x female threaded connections

• Bubble tight seating

• Elastomer seat
