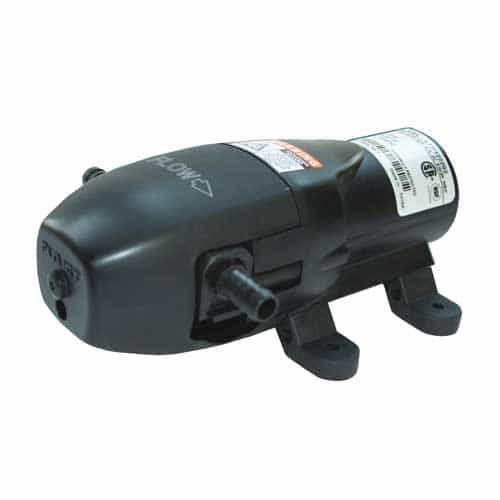

Flojet RLFP222202D Polypropylene LF Plus Compact Low Flow Diaphragm Pump - 1 GPM, 24VDC

Mfr. Model #:
KR Part #:
1.60 lbs
In Stock
Now Only!
Polypropylene low flow pump with Santoprene diaphragms and EPDM check valves. 1 GPM, 24 volt DC.
Prep 65

Prop 65


Technical Specifications

Inlet Port: 3/8 inch
Max GPM: 1
Max Temperature: 110 degrees F
Voltage DC: 24

Product Description

24 Volt Beverage Dispenser Pump

The Flojet RLFP222202D Low Flow Diaphragm Pump is designed primarily for beverage dispensing and transfer. This polypropylene pump has a Santoprene diaphragm and EPDM check valves. Built for a long life, this pump has run dry capabilities, low amp draw, and a built-in thermal protector. 1 GPM flow rate, 24 volt DC, 3/8 hose barb.


  • Pump Design: Reciprocating diaphragm
  • Maximum Flow Rate: 1.0 GPM (3.78 LPM) @ open flow
  • Duty Cycle: Intermittent
  • Housing Material: Polypropylene
  • Diaphragm Elastomer: Santoprene¨
  • Check Valve Material: EPDM
  • Check Valve Spring: 316 Stainless steel
  • Port Type: Quick disconnect - 3/8 HB Straight, Celcon
  • Operating Pressure: 40 psi (2.75 bar) max (no pressure switch version)
  • Pressure Switch Setting: 40 psi (2.75 bar) off / 25 psi (1.7 bar) on
  • Self Priming: Up to 6ft (1.8m)
  • Liquid Temperature: 110° Fahrenheit (43°C) maximum
  • Motor Type: Permanent magnet motor
  • Motor Voltage: 24 VDC
  • Certifications: CSA, CE, NSF
  • Weight: 1.25 lbs (0.5 kg)

Features and Benefits:

  • Sealed motor and pressure switch, providing years of dependable reliability
  • Flojet diaphragm pumps provide dependable run dry capabilities, extending the life of the pump
  • Self priming, accommodating up to 6ft (1.8m)
  • Built in thermal protector, prevents overheating to protect the pump from damage
  • Quick disconnect ports allow for quick cleaning and easy hose replacement in seconds
  • Low amp draw, ideal for battery powered applications

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to
