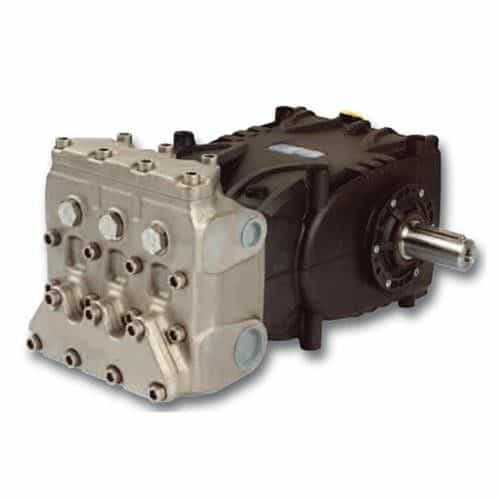

General Pump KF30A Right-Hand KF Series Triplex Plunger Pump - 28 GPM, 2890PSI
Brand:
Mfr. Model #:
KF30A
KR Part #:
GPKF30A
Weight:
150.00 lbs
GTIN:
682491125846
Next-generation technology in a triplex plunger pump perfect for car wash and pressure wash applications! Redesigned sealing areas feature new spherical design for high volumetric efficiency. Flow of up to 28 GPM, at up to 2890 PSI.
Freight Only
Technical Specifications
Bore: 30 millimeter
Crankcase Capacity: 128.5 ounce
Stroke: 50 millimeter
Shaft Diameter: 40 millimeter
RPM: 1000
Max PSI: 2890
Inlet Port: 1 1/2 inch
Horsepower: 55
Max GPM: 28
Max Temperature: 140 degrees F
Product Description
KF Series 28 GPM Pump
The KF30A KF Series Pump from General Pump features next-generation technology in a triplex plunger pump perfect for car wash and pressure wash applications! Redesigned sealing areas feature new spherical design for high volumetric efficiency. Durable high-resistance light allow die cast aluminum crankcase and 420 stainless steel nickel-treated manifold provide for long life span even in harsh environments. Pair with available SAE-C hydraulic drive bell housing and flexible couplers for easy integration.
Dimensions: 20.7" x 14.5" x 9.9"
Features:
- Patent-pending, symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion
- Low-high pressure packing design with integrated cooling system
- High volumetric efficiency suction/delivery valves featuring new spherical design of sealing areas
- Splash lubrication
- Solid ceramic plungers, stainless steel valves
- Special antifriction, forger, light allow connecting rods
- Max Flow: 28 GPM
- Max Pressure: 2890 PSI
- 1000 RPM
- Bore: 30mm
- Stroke: 50mm
- Shaft Diameter: 40mm
- Horsepower: 55
- Maximum Fluid Temperature: 140° F
- Inlet Port: 1.5" NPT-F
- Outlet Port: 1" NPT-F
