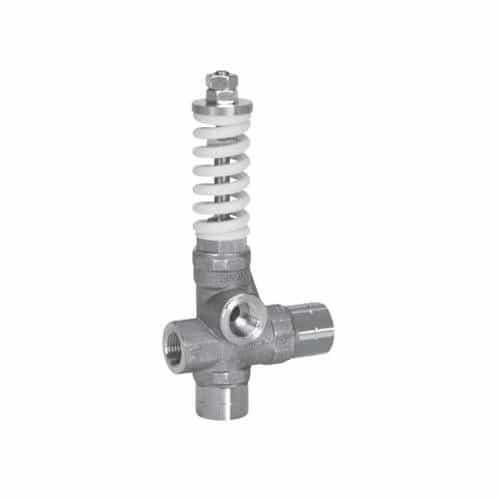

CAT Pumps 7531 Stainless Steel White Spring Pressure Relief Valve - 21 GPM, 2200 PSI, 1/2 in.
Brand:
Mfr. Model #:
7531
KR Part #:
PU07531
Weight:
2.64 lbs
Usually Ships in 2 Weeks
Stainless steel pressure relief valve with a white spring and 1/2" inlet, outlet, and bypass ports. Can be used in applications up to 2200 PSI and achieves up to a 21 GPM flow rate. Protects the pump and other equipment in your high-pressure system.
Technical Specifications
Max PSI: 2200
Max GPM: 21
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Max Temperature: 140 degrees F
Product Description
2200 PSI Secondary Relief Valve
The CAT Pumps 7531 Valve is a stainless steel relief valve with a bypass port. Recommended for use as a secondary protective device used in conjunction with the main regulator or unloader. Offers additional protection to pump and other equipment in a higher pressure system.
Dimensions: 8.75" x 3.75" x 1.75"
Specifications:
- 304 stainless steel construction
- White spring
- 21 GPM flow rate (1-21 flow range)
- 2200 PSI maximum pressure (400-2200 PSI pressure range)
- 1/2" female NPT inlet and outlet
- 1/2" bypass port
- 140° Fahrenheit maximum temperature
- Weight: 2.64 lbs.
Features:
- For single or multiple pump, weep, or multi-nozzle systems.
- Removes load from pump when in full by-pass.
- Senses pressure built up from downstream flow changes and by-passes flow to protect pump from overpressure.
- Minimum pressure fluctuations with alternating use of multiple guns.
- Multiple ports for convenient mounting
- Color coded spring for easy identification and simple change from one model to another.
- Standard NBR O-rings
