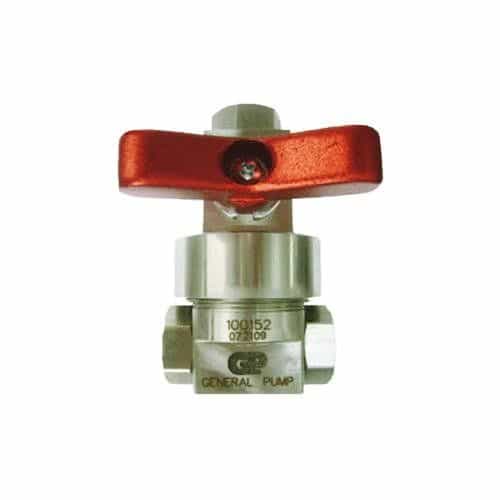

General Pump 100152 Pulse Pump with Ball Valve - 0.75 GPM, 1500 PSI

Brand:
Mfr. Model #:
100152
KR Part #:
GP100152
Weight:
3.00 lbs
GTIN:
682491017035
Usually Ships in 2 Weeks
MSRP
$651.69
Now Only!
$249.96
Pulse pumps allow cleaning solution application without running chemicals through your main pump. 303 stainless steel body for corrosion resistance.



Technical Specifications

Max GPM: 0.75
Max PSI: 3000
Inlet Port: 1/8 inch
Outlet Port: 1/8 inch

Product Description

GP Pulse Pump

The General Pump 100152 Pulse Pump makes it easy to blend cleaning chemicals into your flow without cycling them through your drive pump. Permits cleaning solution application at system pressure up to 1500 PSI. Draws cleaning solution with each stroke of the drive pump, and mounts to one of the drive pump inlet valve ports by using a special valve adapter.

Features:

  • 303 stainless steel body
  • NBR diaphragm offers resilience and chemical compatibility
  • Integrated ball valve allows shut-off when using water pressure up to 3000 PSI
  • New union style allows replacement of diaphragm without removing plumbing

Specifications:

  • Max Pressure for Pulse Pump: 1500 PSI
  • Max Pressure with Ball Valve Closed: 3000 PSI
  • Inlet: 1/8"-27 NPT-F
  • Outlet: 1/8"-27 NPT-F
  • Pulse Port: 3/8" NPT-F
