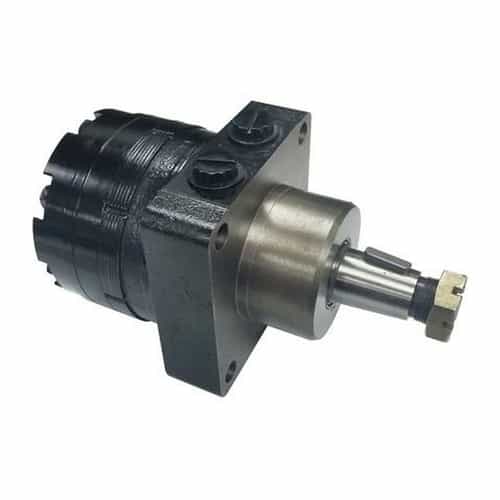

Parker TJ0130US080AAAF Low Speed High Torque Hydraulic Motor - 1 1/4 Inch Tapered Shaft, 360 RPM, 14 GPM, 2973 PSI
Brand:
Mfr. Model #:
TJ0130US080AAAF
KR Part #:
PM1140
Weight:
17.00 lbs
Call For Availability
This hydraulic motor is designed for high torque applications and handles low speeds. Sustains a maximum speed of 360 RPM. Equipped with a 1-1/4" tapered shaft.
Technical Specifications
Max PSI: 2973
Max GPM: 14
RPM: 360
Shaft Diameter: 1 1/4 inch
Product Description
High Torque Motor
Parker's TJ0130US080AAAF hydraulic motor is low speed high torque applications. Handles speeds of 360 RPM and a maximum flow rate of 14 GPM. Equipped with 7/8" - 14 SAE ports. Produces 2876-Inch lbs. of Torque. Shaft measure 1-1/4 Inch and features a tapered shaft.
Specifications:
- Shaft: 1 1/4" Tapered Shaft with Key
- Maximum Torque: 2876-Inch lbs. of Torque
- Mounting: 7/8"-14 SAE Ports
- Maximum Speed: 360 RPM
- Maximum Flow Rate: 14 GPM
- Maximum Pressure Differential: 2973 PSI
- 7.20 cubic Inch Displacement
- Wheel Mount
- Low Speed, High Torque
- Includes Castle Nut
