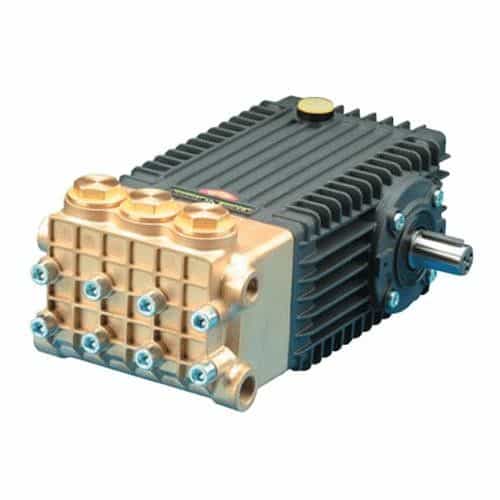

General Pump TSP1819 High-Pressure Triplex Plunger Pump, 5.0 GPM, 5100 PSI
Brand:
Mfr. Model #:
TSP1819
KR Part #:
GPTSP1819
Weight:
41.00 lbs
GTIN:
682491120131
High-pressure pump built for rigorous duty cycles and chemicals. Features new plunger design that improves thermal shock resistance, as well as high-tech packings. Produces up to 5.0 GPM, at pressures up 5100 PSI.
Technical Specifications
Bore: 18 millimeter
Stroke: 19 millimeter
Shaft Diameter: 24 millimeter
Max Temperature: 165 degrees F
Max PSI: 5100
RPM: 1450
Max GPM: 5
Inlet Port: 1/2 inch
Horsepower: 17.1
Crankcase Capacity: 40.6 ounce
Product Description
5100 PSI General Pump
The General Pump TSP1819 66 Series triplex pump is a high-pressure pump built for rigorous duty cycles and chemicals. New plunger design improves thermal shock resistance, while innovative new seal design extends seal life. Fully anodized crankcase provides better protection against elements, while forged crankshaft increases load potential and reduces fatigue. Ideal for use in pressure cleaning, self-service carwash, multi-gun prep stations, heavy equipment cleaning, industrial cleaning, and more!
Dimensions: 13.8" x 9.8" x 7.7"
Features
- New improved plunger design improves thermal shock resistance.
- Oversized cylindrical roller bearings
- White ceramic plungers, 99% alumina-ceramic
- Fully anodized crankcase.
- Patented "high tech" low and high-pressure seals.
Specifications:
- Max Volume: 5.0 GPM
- Max Discharge Pressure: 5100 PSI
- Max Pump Speed: 1450 RPM
- Max Inlet Pressure: 125 PSI
- Inlet Port: 1/2"-14 BSP-F
- Outlet Port: 3/8"-19 BSP-F
