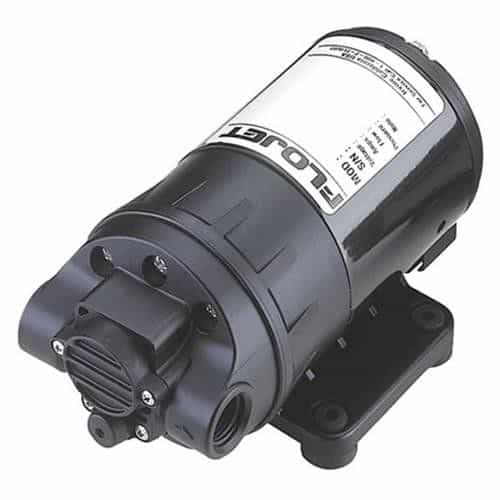

Flojet D3231B5011A Self-Priming Duplex Diaphragm Bypass Pump - 60 PSI Bypass, 1.6 GPM, 24 VDC

Mfr. Model #:
KR Part #:
5.00 lbs
Call For Availability
Now Only!
This is a two-diaphragm pump that handles waterlike and viscous solutions. Requires 24-Volt DC power connections. Handles pressure up to 100 PSI with a 60 PSI pressure switch.
Prep 65

Prop 65


Technical Specifications

Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Voltage DC: 24
Max PSI: 60
Max GPM: 1.6

Product Description

Polypropylene Pump

The Flojet D3231B5011A is a double diaphragm pump includes an integrated 24 VDC electric motor. Engineered for the ability to be self-priming up to 8 feet. Pump body is made from polypropylene for corrosion and chemical resistance. Features the ability to run dry without damaging the critical components of the pump and features a built-in back flow preventer.


  • Voltage: 24 VDC
  • GPM: 1.6 GPM
  • Bypass: 60 PSI
  • Max Pressure: 100 PSI
  • Ports: 3/8" NPT Female
  • Material: Polypropylene
  • Diaphragm: Buna
  • Check Valve: Buna
  • Motor: Electric
