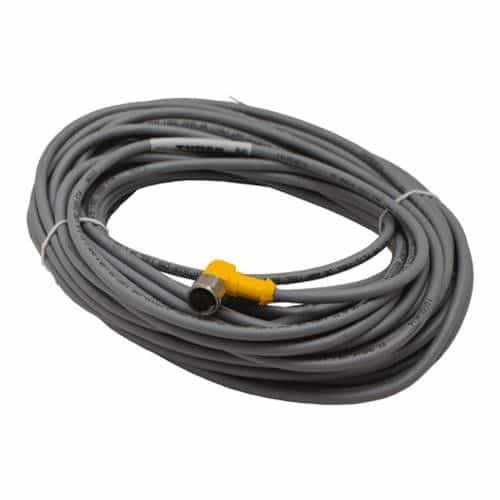

Turck WKV 4.4T-15 Industrial Grade PVC Jacketed Cordset, Gray - 15 M, 250 VAC
Brand:
Mfr. Model #:
WKV 4.4T-15
KR Part #:
TPSC5055
Weight:
0.55 lbs
Cable for car wash sensors. Equipped with an M12 Female Eurofast connector with a right angle. Designed for 250 VAC electrical connections.
Product Description
15 M - Female Right Angle M12 Eurofast Cable
The Turck WKV 4.4T-15 is cable constructed for compatibility with sensors used in car washes. Designed with a female M12 Eurofast connector featuring a right angle design for applications where the cord would need bent in compact areas. Cable measures 15 meters (49.2 feet) in length. Compatible with 250 VAC electrical connections.Specifications:
- Series: WKV 4.4T Series
- Length: 15 M (49.2 FT)
- Connector: Female Right Angle (90 Degree) M12 Eurofast
- Contact Carrier Material: Nylon or TPU
- Molded Head Material/Color: TPU/Yellow
- Contact Material/Plating: Brass/Gold
- Coupling Nut Material/Finish: Stainless Steel/Passivated
- Rated Current (A): 4.0 A
- Rated Voltage: 250 V
- Outer Jacket Material/Color: PVC/Gray
- Conductor Insulation Material: PVC
- Number of Conductors (AWG): 4x22 AWG
- Temperature Range: -40 Degrees Celsius to 105 Degrees Celsius (-40 Degrees Fahrenheit to 221 Degrees Fahrenheit
- Protection Class: Meets NEMA 1,3,4,6P and IEC IP68
