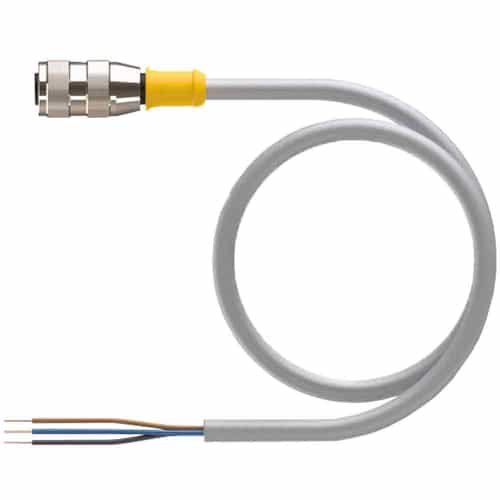

M12 Connector Cordset

The Turck RK 4T-2 is a single ended cordset for Turck actuators and sensors that accept female M12 connectors. Measures 6.5 feet in length and is jacketed with gray PVC. Cable is both oil and sunlight resistant. It is constructed to meet IP68 and IP69K rating requirements. Compatible with 250 VAC electrical connections.

Specifications:

• Application: Actuator and Sensor
• Design: Single-ended
• Connector A: Female, M12 × 1, Straight, A-code
• Number of contacts: 4
• Connector body: Plastic, TPU, Yellow
• Coupling nut: Brass, CuZn, Nickel-plated
• Voltage: 250 V
• Current: 4 A
• Cable diameter Ø: 5.13 mm
• Length (L): 2.0 m (6.5 feet)
• Cable jacket: PVC, Gray
• Number of Conductors: 3
• Protection class (When coupled): IP68, IP69K
• Approvals: UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS

Features:


• Sunlight Resistant
• -40 Cold Bend Rating
• Oil Resistant
• Flame Ratings: UL 1685 FT4, UL1061, CSA FT4
• Flexlife® and C-Track Approved
