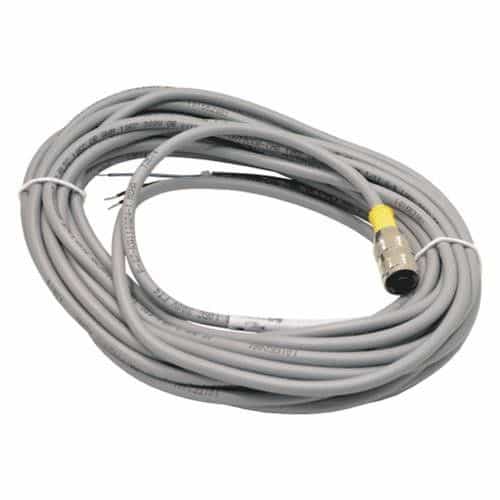

8 Meter Connection Cable

A corset for Turck sensors with straight female M12 connectors. The cord measures 8 meters in length. Cord is compatible with up to 250 volt electrical connections. Made with a gray pvc jacket and brass coupler housing.

Specifications:

• Type: RK 4T-8
• ID no.: U2160-2
• Connector A: Female, M12 _ 1, Straight, A-code
• Design Specification: Acc. to IEC 61076-2-101
• Number of Pins: 3
• Contacts: Bronze, CuSn, Gold-plated
• Contact Carriers: Plastic, TPU, Black
• Connector Body: Plastic, TPU, Yellow
• Coupling Nut: Brass, CuZn, Nickel-plated
• Connector Seal: O-ring, Plastic, FKM/FPM
• Tightening Torque (Range): 0.8 … 1 Nm (note max. Torque of mating connector!)
• Mechanical Life: > 100 Mating cycles
• Pollution Degree: 3
• Protection Class (When coupled): IP68, IP69K
• NEMA: 1, 3, 4, 6P

Cable Data:

• Cable ID: RF52081
• Total Number of Conductors: 3
• Cable Diameter: Ø 5.13 mm
• Cable Length (L): 8 m (+50mm or 4% of length/-0.0, Whichever is greater)
• Cable Jacket PVC: Gray
• Conductor Diameter: 0.054"
• Conductor Material: TC (Tinned Copper)
• Conductor Insulation Material: PVC
• Conductor Size: 3 x 22 AWG [Similar to 0.34 mm_]
• Number of Strands x O.D.: 19 x 0.0058 "
• Conductor Colors: BN, BU, BK
• Electrical Properties at +20 °C
• Rated Voltage: 250 V
• Current: 4 A
• Mechanical and Chemical Properties
• Bending Radius (Static): ≥ 5 x Ø
• Bending radius (Dynamic): ≥ 10 x Ø
• Cold Bend Rating: -40 °C
• Flex Rating: 20 x Ø: 10 million cycles*
• *When properly installed @ 20°C,
• 50%RH, and a cycle speed of ≤0.5 cycles
• per second.
• C-Track: Yes
• Ambient Temperature Range (Static): -40 °C…+105 °C
• Ambient Temperature Range (Dynamic): -40 °C…+105 °C
• Temperature Range (Installation): -20 °C…+105 °C

Approval:

• Approvals UL 2238
• CSA C22.2 No. 182.3
• CE
• RoHS
