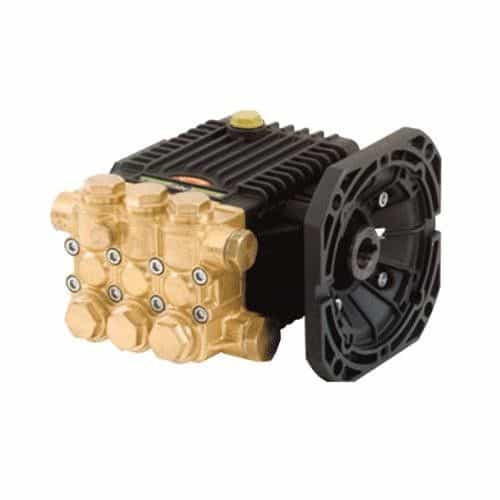

General Pump TC1505E345 Series 60 Electric Pump, 2.1 GPM, 2700 PSI, 5/8 in. Hollow Right Shaft
Brand:
Mfr. Model #:
TC1505E345
KR Part #:
GPTC1505E345
Weight:
15.00 lbs
GTIN:
682491119500
TC Series 60 triplex plunger pump with hollow right shaft provides excellent service for car wash and pressure washing applications. Features a forged brass manifold and proven crankcase in a compact design. Up to 2.1 GPM at 2700 PSI.
Technical Specifications
Bore: 15 millimeter
Crankcase Capacity: 11.8 ounce
Horsepower: 3.88
Inlet Port: 1/2 inch
Shaft Diameter: 16 millimeter
Stroke: 5 millimeter
RPM: 3400
Max Temperature: 165 degrees F
Max PSI: 2700
Max GPM: 2.1
Product Description
General Pump TC Series 60 Pump
The General Pump TC1505E345 pump provides excellent service for car wash and pressure washing applications. Features a forged brass manifold and proven crankcase and bearing design with supreme durability and reliability. 5/8" hollow shaft is flanged for direct couple to electric motors (NEMA 56C)
Dimensions: 7.8" x 7.3" x 5.5"
Features
- Compact design
- 5/8" hollow shaft, flanged for direct couple to electric motors (NEMA 56C)
- Oversized bearings for long life
- New generation seal system for longer life
- Forged brass manifold
Specifications
- Maximum Flow: 2.1 GPM
- Maximum Pressure: 2700 PSI
- RPM: 3400 RPM
- Max Temperature: 165° F
- Inlet Port: 1/2"-14 BSP-F
- Discharge Port: 3/8"-19 BSP-F
