Turck WK 4.5T-10 Single-Ended 5-Wire PVC Jacketed Cordset - Female Right Angle 5-Pin M12 Connector, 250 VAC. 10 M Length
Brand:
Mfr. Model #:
WK 4.5T-10
KR Part #:
TPSC5000
Weight:
2.00 lbs
PVC jacketed cordset from Turck. Features a 5 wire construction with an M12 elbow connector that attaches to sensors and actuators. Accepts 250 VAC currents.
Technical Specifications
Voltage AC: 250
Product Description
250 VAC - Single Ended Cordset

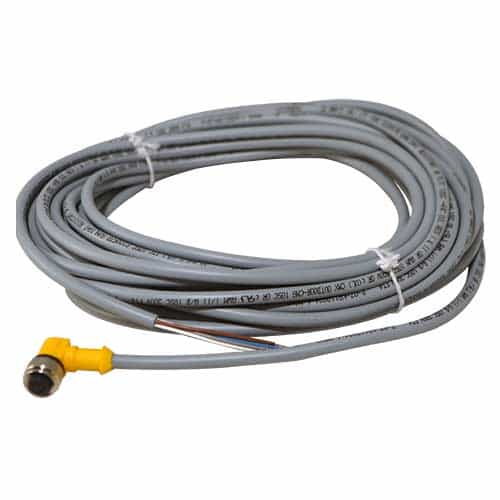

The Turck WK 4.5T-10 is a 5 wire cordset that measures 10 meters in length. Features a 5-Pin M12 female connector designed with a right angle and housed in yellow TPU plastic. The coupling nut is made with nickel-plated brass. Covered with a PVC jacketing that is sunlight resistant and when coupled meets IP68 and IP69K protection standards. Compatible with 250 VAC electrical currents.Specifications:
- Application: Actuator and Sensor
- Design: Single-ended
- Connector A: Female, M12 × 1, Right angle, A-code
- Number of contacts: 5
- Connector body: Plastic, TPU, Yellow
- Coupling nut: Brass, CuZn, Nickel-plated
- Voltage: 250 V
- Current: 4 A
- Cable diameter Ø 5.69 mm
- Length (L): 10.0 m
- Cable jacket: PVC, Gray
- Number of Conductors: 5
- Protection class (When coupled): IP68, IP69K
- Approvals: UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
- Sunlight Resistant
- -40 Cold Bend Rating
- Oil Resistant
- Flame Ratings: UL 1685 FT4, UL1061, CSA FT4
- Flexlife® and C-Track Approved
